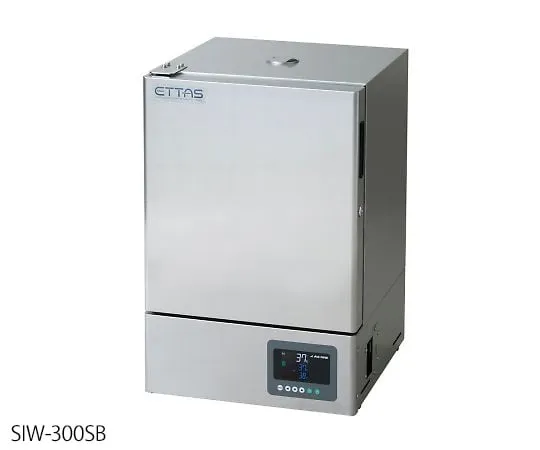

1-9005-41-22 Incubator (Stainless Steel Type) With Pre-Shipment Inspection Certificate SIW-300SB
Product Description
Product Model: 1-9005-41-22Product Brand: AS ONE Corpor […]
Contact Us
Product Details
Product Model: 1-9005-41-22
Product Brand: AS ONE Corporation
Features
- Incubator Features: A digital overrise prevention device is standard.
- -Three-stage PID control reduces overshoot and undershoot in a wide temperature range.
- It is an all-round type with 4 timer functions, day of the week and time specification timers as well as 16 step 8 pattern program functions.
- -LCD display with excellent visibility and operation.
- [Features of the Wireless Logger App]: You can check the measured and set temperatures from a distance.
- The measured temperature and set temperature are stored in the memory in the board at regular intervals.
- It can be operated intuitively without a manual.
- The read recorded data is automatically converted into an attached file in CSV format, which can be sent to a computer or other device just by entering an email address, and the file can be opened with spreadsheet software such as EXCEL(R) to graph, edit, and create forms.
- The recorded data is retained in the board even if the power is turned off until it is erased, even if it is read.
- You can start/stop recording and erase from the app.
- The recording stops automatically when the memory becomes full.
Spec
- Outer dimensions (mm): 400 x 447 x 610
- Capacity (L): about 30
- Convection type: Natural convection air jacket
- Temperature control range: R.T. + 5 to 80 °C
- 37 °C arrival time: 80 minutes
- Temperature distribution accuracy (JTM K05): ±0.3 °C (at 37 °C)
- Temperature fluctuation (JIS): ±0.3 °C (at 37 °C)
- Temperature gradient (JIS): 0.6 °C (at 37 °C)
- Temperature control system: 3 stages PID control, SSR output
- Communication function: standards : Bluetooth Smart (Bluetooth 4.2)/Distance: Class2 (Approximately 10 m)
- Logger function
- *Recording method: full stop (Stop recording in full memory)
- *Recording period: 2 seconds/10 seconds/30 seconds/60 seconds/10 minutes/60 minutes
- *Display period: 2 sec/10 sec/30 sec/sec/60 sec/300 sec
- external application
- *Functions: Start/Stop Recording, Read/Erase Recorded Data, Transfer to PC/List Display, Tr*** Graph Display (Scalable)
- *recording format: CSV format
- *Compatible OS: iOS 11.4 and later
- *compatible models: iPhone 5s, 5c, 6, 6 Plus, 6s Plus, SE, 7, 7 Plus, 8, 8 Plus, X
- Additional function: timer (ON/OFF timer, SV start/ON/OFF timer)/temperature gradient program of up to 16 steps x 8 patterns/day/time specification timer
- Safety device: Overcurrent breaker, digital setup, indep***ent overrise prevention function, burnout mechanism (Heater OFF when sensor is disconnected)
- Heater capacity: 280W
- Temperature sensor: Pt 100 ω x 2 pieces (1 piece for temperature control and overheating prevention)
- Tana pitch number of step: 35mm 6 stages
- Air outlet: φ32mm x 1 piece
- Exterior/Interior: Stainless (SUS430)/Stainless steel (SUS304)
- Weight: about 20kg
- Power supply: AC100V 50/60Hz Cord length 2.3 m (3P plug)
- Rating: 3.0 A
- Accessories: shelf board Rail/shelf board x 2 sets
- Accessories: Inspection and inspection documents
- *Products with inspection certificate is a service to issue inspection certificate after inspection by control and electric engineer at the time of shipment.
- *IQ/OQ service is available for a fee.
