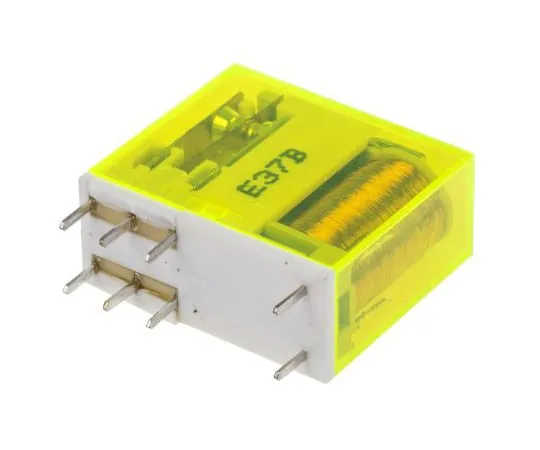

63-6546-05 Finder50 Series DPDT Non-Latching Relay PCB Mount, 24V dc Coil, 8A 50.12.9.024.1000
Product Description
Product Model: 63-6546-05Product Brand: Finder Features […]
Contact Us
Product Details
Product Model: 63-6546-05
Product Brand: Finder
Features
- IMQ, TUV, UL recognised component for Canada and US. 50 Series - 50.12. Finder 50 series safety relay with forcibly guided contacts according to EN 50205 type B. High physical separation between adjacent contacts 8mm, 6kV (1.2/50μs) isolation, coil to contact Flux proof: RT II
Spec
- Quantity:1piece
- Coil Voltage : 24V dc
- Coil Power : 700mW
- Coil Resistance : 820 Ω
- Isolation Coil To Contact : 6kV
- Contact Configuration : DPDT
- Mounting Type : PCB Mount
- Switching Current : 8A
- Terminal Type : Through Hole
- Number of Poles : 2
- Maximum Switching Voltage AC : 400V ac
- Height : 25mm
- CODE No.:102-456
