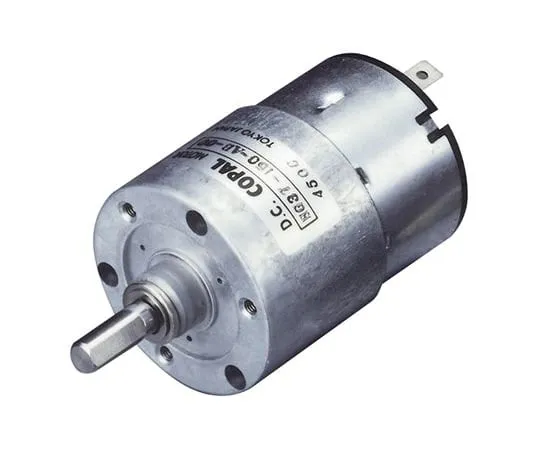

63-5180-86 Copal Electronics, 12 V dc, 588 mNm DC Geared Motor, Output Speed 14.5 rpm HG37-300-AA-00
model:
63-5180-86
brand:
Copal Electronics
Product Description
Product Model: 63-5180-86Product Brand: Copal Electroni […]
Contact Us
Product Details
Product Model: 63-5180-86
Product Brand: Copal Electronics
Features
- Copal Electronics HG37 Series Geared Motors. Copal Electronics HG37 Series DC geared motors fitted with a planetary gearbox for higher torque and lower speed rotation. Bi-directional application Resin gears for quiet operation Sleeve bearings Metal casing RoHS compliant
Spec
- Quantity：1piece
- Output Speed : 14.5 rpm
- Supply Voltage : 12 V dc
- Maximum Output Torque : 588 mNm
- Shaft Diameter : 6mm
- Width : 39 (Dia.)mm
- Depth : 83.2mm
- Dimensions : 39 (Dia.) x 83.2 mm
- Current Rating : 180 mA
- Shaft Angle : Straight
- CODE No.:921-1460
