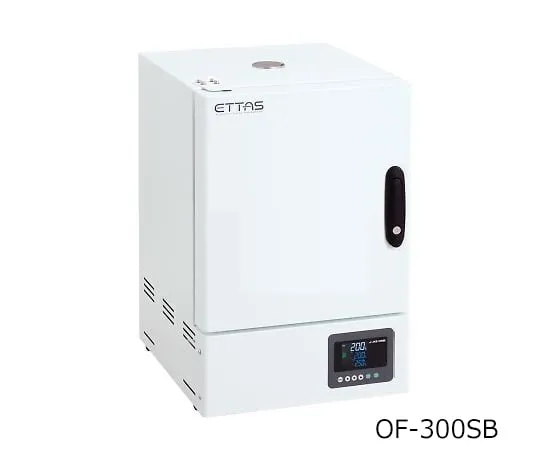

1-8999-51 Constant-Temperature Drying Oven (Steel Type, Forced Convection System) Without Window (Left Pivot Door) OF-300SB
laboratoryinstruments

1-8999-51 Constant-Temperature Drying Oven (Steel Type, Forced Convection System) Without Window (Left Pivot Door) OF-300SB

model: 1-8999-51
brand: AS ONE Corporation

Product Description

Product Model: 1-8999-51Product Brand: AS ONE Corporati […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 1-8999-51
Product Brand: AS ONE Corporation

Features

  • Common Features of ETTAS/S Series: Digital overrise prevention device is standard.
  • Three-stage PID control reduces overshoot and undershoot over a wide temperature range. It is an all-around type with 4 timer functions, day of the week and time specification timers as well as 16 step 8 pattern program functions.
  • The LCD display offers excellent visibility and operation.
  • By connecting options, errors can be instantly identified and addressed. (
    ) * Wireless Logger App Features * You can check the measured and set temperatures from a distance.
  • The measured temperature and set temperature are stored in the memory in the board at regular intervals.
  • You can operate it intuitively without a manual.
  • Recorded data that is read out is automatically converted into attached files in CSV format, which can be sent to a computer or other device simply by entering an email address, and the file can be opened with spreadsheet software such as EXCEL to graph, edit and create forms.
  • Even if the recorded data is read, the data is retained in the board even if the power is turned off until it is erased.
  • You can start, stop and delete records from the app.
  • 6 Safety and Security Features: (1) You can check PV/SV from a distance.
  • It can be operated intuitively without a manual.
  • (2) Transfer recorded data to a PC for easy graph creation!
  • Recorded data you read is automatically converted into a CSV-format file that can be easily transferred to your computer by email. ③ Safe and secure function when an error occurs By connecting the option, you can check the error instantly and take action.
  • (4) High-precision temperature control 3-step PID control - PID control is available for individual low, medium and high temperature ranges. Overshooting and undershooting are reduced.
  • (5) Digital setting type overrise prevention function - This overrise prevention function allows the work temperature to be set digitally. When the set value is reached, the heater turns off.
  • Variable air volume (forced convection system) - 3 levels of HI, MID, and LOW can be set in an analog sense. Light powder is hard to scatter.

Spec

  • Inner dimensions (mm): 300 x 327 x 300
  • Door: Left
  • Temperature adjustment range: R.T. + 20 to 320 °C
  • Maximum temperature arrival time: about 30 minutes
  • Temperature distribution accuracy (JTM K05): ±5 °C (at 320 °C)
  • Temperature fluctuation (JIS): ±1 °C (at 320 °C)
  • Temperature gradient (JIS): 13 °C (at 320 °C)
  • Temperature control method: 3 stages PID control, SSR output
  • Communication function: standards : Bluetooth Smart (Bluetooth 4.2)/Distance: Class2 (Approximately 10 m)
  • Logger Features:
  • *Recording method: full stop (Stop recording in full memory)
  • *Recording period: 2 seconds/10 seconds/30 seconds/60 seconds/10 minutes/60 minutes
  • *Display period: 2 sec/10 sec/30 sec/sec/60 sec/300 sec
  • External applications:
  • *Functions: Start/Stop Recording, Read/Erase Recorded Data, Transfer to PC/List Display, Tr*** Graph Display (Scalable)
  • *recording format: CSV format
  • *Compatible OS: iOS 11.4 and later
  • *compatible models: iPhone 5s, 5c, 6, 6 Plus, 6s Plus, SE, 7, 7 Plus, 8, 8 Plus, X
  • Additional function: timer (ON/OFF timer, SV start/ON/OFF timer)/temperature gradient program of up to 16 steps x 8 patterns/day/time specification timer
  • Safety device: Digital setting type overrise prevention function, overcurrent breaker burnout mechanism (Heater OFF when sensor is disconnected)
  • Heater capacity: 1100W
  • Temperature sensor: K class thermocouple x 2 pieces (1 piece for temperature control and overheating prevention)
  • Inner capacity: about 30L
  • Tana pitch number of step mm: 35 pitch 6 stages
  • Exterior/Interior: Steel powder coating/Stainelss steel SUS304 (Partly applied stainless steel SUS443J1)
  • Air outlet: φ32mm x 1 piece
  • Outer dimensions: 400 x 447 x 610mm
  • Weight: about 25kg
  • Power supply: AC100V 50/60Hz Cord length 2.4 m (3P plug)
  • rated current: 11.5 A
  • shelf board, load tolerance: 15kg
  • Accessories: shelf board x 2 pieces/shelf board rail x 2 sets
