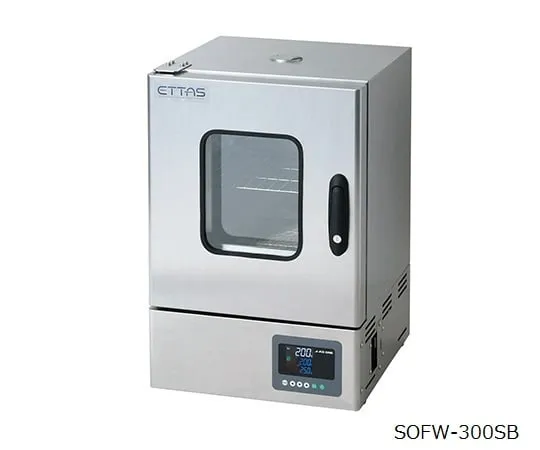

1-8998-21-22 Constant-Temperature Drying Oven (Stainless Steel Type, Forced Convection System) With Window (Left Pivot Door) With Pre-Shipment Inspection Certificate SOFW-300SB
Product Description
Product Model: 1-8998-21-22Product Brand: AS ONE Corpor […]
Contact Us
Product Details
Product Model: 1-8998-21-22
Product Brand: AS ONE Corporation
Features
- Common Features of ETTAS/S Series: Digital overrise prevention device is standard.
- Three-stage PID control reduces overshoot and undershoot over a wide temperature range. It is an all-around type with 4 timer functions, day of the week and time specification timers as well as 16 step 8 pattern program functions.
- The LCD display offers excellent visibility and operation.
-
By connecting options, errors can be instantly identified and addressed.（
) * Wireless Logger App Features * You can check the measured and set temperatures from a distance. - The measured temperature and set temperature are stored in the memory in the board at regular intervals.
- You can operate it intuitively without a manual.
- Recorded data that is read out is automatically converted into attached files in CSV format, which can be sent to a computer or other device simply by entering an email address, and the file can be opened with spreadsheet software such as EXCEL to graph, edit and create forms.
- Even if the recorded data is read, the data is retained in the board even if the power is turned off until it is erased.
- You can start, stop and delete records from the app.
- 6 Safety and Security Features: (1) You can check PV/SV from a distance.
- It can be operated intuitively without a manual.
- (2) Transfer recorded data to a PC for easy graph creation!
- Recorded data you read is automatically converted into a CSV-format file that can be easily transferred to your computer by email. ③ Safe and secure function when an error occurs By connecting the option, you can check the error instantly and take action.
- (4) High-precision temperature control 3-step PID control - PID control is available for individual low, medium and high temperature ranges. Overshooting and undershooting are reduced.
- (5) Digital setting type overrise prevention function - This overrise prevention function allows the work temperature to be set digitally. When the set value is reached, the heater turns off.
- Variable air volume (forced convection system) - 3 levels of HI, MID, and LOW can be set in an analog sense. Light powder is hard to scatter.
Spec
- Inner dimensions (mm): 300 x 327 x 300
- Door: Left
- Temperature adjustment range: R.T. + 20 to 320 °C
- Maximum temperature arrival time: about 30 minutes
- Temperature distribution accuracy (JTM K05): ±5 °C (at 320 °C)
- Temperature fluctuation (JIS): ±1 °C (at 320 °C)
- Temperature gradient (JIS): 13 °C (at 320 °C)
- Temperature control method: 3 stages PID control, SSR output
- Communication function: standards : Bluetooth Smart (Bluetooth 4.2)/Distance: Class2 (Approximately 10 m)
- Logger Features:
- *Recording method: full stop (Stop recording in full memory)
- *Recording period: 2 seconds/10 seconds/30 seconds/60 seconds/10 minutes/60 minutes
- *Display period: 2 sec/10 sec/30 sec/sec/60 sec/300 sec
- External applications:
- *Functions: Start/Stop Recording, Read/Erase Recorded Data, Transfer to PC/List Display, Tr*** Graph Display (Scalable)
- *recording format: CSV format
- *Compatible OS: iOS 11.4 and later
- *compatible models: iPhone 5s, 5c, 6, 6 Plus, 6s Plus, SE, 7, 7 Plus, 8, 8 Plus, X
- Additional function: timer (ON/OFF timer, SV start/ON/OFF timer)/temperature gradient program of up to 16 steps x 8 patterns/day/time specification timer
- Safety device: Digital setting type overrise prevention function, overcurrent breaker burnout mechanism (Heater OFF when sensor is disconnected)
- Heater capacity: 1100W
- Temperature sensor: K class thermocouple x 2 pieces (1 piece for temperature control and overheating prevention)
- Inner capacity: about 30L
- Tana pitch number of step mm: 35 pitch 6 stages
- Exterior/Interior: SUS304/Stainelss steel SUS304 (Partly applied stainless steel SUS443J1)
- Air outlet: φ32mm x 1 piece
- Outer dimensions: 400 x 447 x 610mm
- Observation window size: 180 x 220mm
- Weight: about 25kg
- Power supply: AC100V 50/60Hz Cord length 2.4 m (3P plug)
- rated current: 11.5 A
- shelf board, load tolerance: 15kg
- Accessories: shelf board x 2 pieces/shelf board rail x 2 sets
- Accessories: Inspection and inspection documents
- *Products with inspection certificate is a service to issue inspection certificate after inspection by control and electric engineer at the time of shipment.
- *IQ/OQ service is available for a fee.
