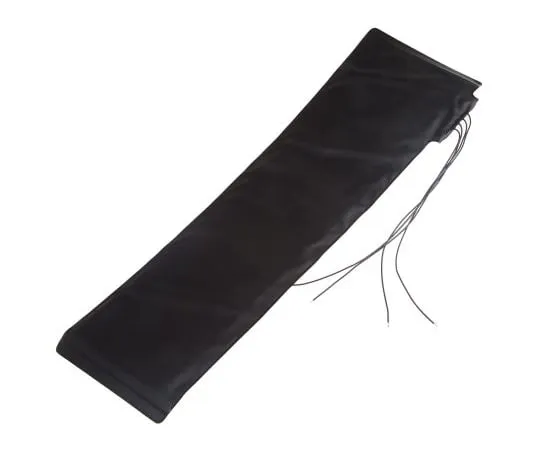

63-5180-22 RS PRO Pressure Mat Surface Mount 918-4756
Electronic/Electrical Parts and Controll Equipments

63-5180-22 RS PRO Pressure Mat Surface Mount 918-4756

model: 63-5180-22
brand: RS PRO

Product Description

Product Model: 63-5180-22Product Brand: RS PRO Features […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 63-5180-22
Product Brand: RS PRO

Features

  • Not to be ***d in machine control safety applications. RS Pro Pressure Mat 4 Wire Out. Floor pressure-pad security switch manufactured from Seem welded black PVC. A black PVC-covered 16/0.2 mm lead-out wires, 300 mm long. Two wires comprise the N/O SPST circuit, whilst two others form a continuous loop. The switch circuit pair has 5 mm pre-stripped ***s. The small pressure pad is recomm***ed for *** under the stair carpet ( RS ; 918-4756 918-4756 ) and the large type is suitable for *** under carpets adjacent to doors and windows. Normally open 25Kg over 50mm ;sup>2 ;/sup> actuation pressure Maximum switching voltage 25 V/DC Maximum switching current 0.25 Amps DC (Resistive) Carry current Max 0.25 Amps DC (Resistive) Maximum power 10 W/VA Ingress protection IP64 (Not waterproof) Contact resistance 1 Ohm (typical) Operating temperature -10° to +70° C Seem welded PVC material 0.22mm ;sup>2 ;/sup> black PVC insulated cable

Spec

  • Quantity:1piece
  • Activation Type : Pressure Pad Switch
  • Height : 595 mm
  • Width : 170mm
  • CODE No.:918-4756
