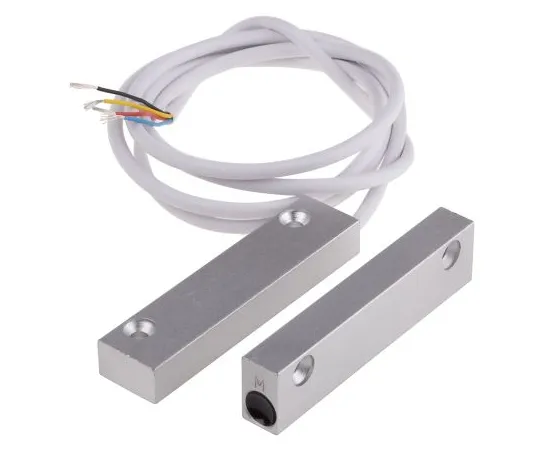

63-5180-11 RS PRO Door and Window Switch Surface Mount 500mA, 50V ac/dc 918-2684
Product Description
Product Model: 63-5180-11Product Brand: RS PRO Features […]
Contact Us
Product Details
Product Model: 63-5180-11
Product Brand: RS PRO
Features
- RS Pro Grade 2 Surface Mount Alarm Contact. Cable type comes fitted with 750 mm long cable. Proximity switches primarily designed for discrete protection of doors and windows. The switches are made of aluminium housing material, a N/O SPST magnetically operated reed switch. The permanent actuating magnet is also of moulded construction to facilitate easy fixing. Normally open + supervisory loop Grade 2 Maximum switching voltage 50 VAC/ DC Maximum switching current 0.5 A Carry current Max 0.8 A Maximum power 10 W/VA Insulation resistance 100 MOhms Contact resistance 120 mOhms Operating distance 15 mm Operating temperature -40° to +85° C Aluminium housing material
Spec
- Quantity：1piece
- Mounting Type : Surface Mount
- Switching Current : 500mA
- Switching Voltage : 50V ac/dc
- Operating Gap : Maximum of 30mm
- Depth : 17 mm
- Height : 10 mm
- Operating Gap Maximum : 30mm
- Width : 72mm
- CODE No.:918-2684
