Electronic/Electrical Parts and Controll Equipments

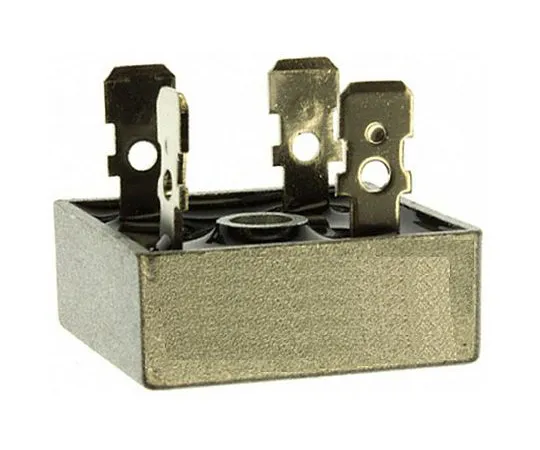

63-5179-98 HY Electronic Corp KBPC2510, Bridge Rectifier, 25A 1000V, 4-Pin KBPC KBPC2510
model:
63-5179-98
brand:
HY Electronic Corp
Product Description
Product Model: 63-5179-98Product Brand: HY Electronic C […]
Contact Us
Product Details
Product Model: 63-5179-98
Product Brand: HY Electronic Corp
Features
- Bridge Rectifier - KBPC Series. The KBPC family of silicon bridge rectifiers has a reverse voltage of 600 V or 1000 V. The rectifiers offer different forward currents ranging from 15A to 50 A. There are two types available, the KBPC W and the KBPC series which comes with 0.25 in solder FAST ON terminals. They are ***d in AC to DC conversion and in printed circuit applications.. Surge overload: -240 A to 500 A peaks Electrically isolated base -2000 V Low forward voltage drop Material: U/L recognition Solder 0.25 FAST ON terminals (KBPC only)
Spec
- Quantity：1bag(10pieces)
- Bridge Type : Single Phase
- Peak Average Forward Current : 25A
- Peak Reverse Repetitive Voltage : 1000V
- Mounting Type : Through Hole
- Package Type : KBPC
- Pin Count : 4
- Diode Technology : Silicon Junction
- Configuration : Single
- Peak Non-Repetitive Forward Surge Current : 400A
- Maximum Operating Temperature : +150 °C
- Minimum Operating Temperature : -55 °C
- Peak Forward Voltage : 1.1V
- Peak Reverse Current : 10µA
- Length : 28.8mm
- Dimensions : 28.8 x 28.8 x 11.23mm
- CODE No.:917-9007
