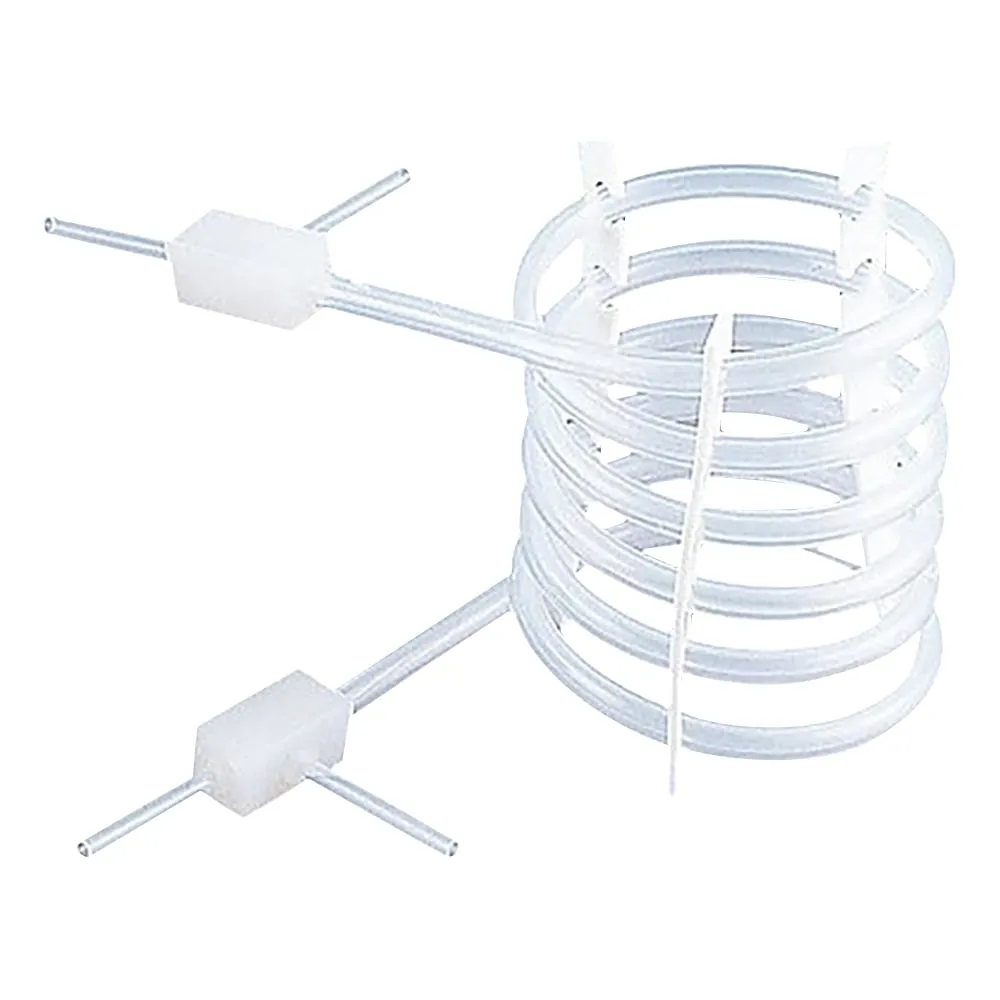

1-8979-03 Double-Pipe Heat Exchanger NH-T1
Product Description
Product Model: 1-8979-03Product Brand: AS ONE Corporati […]
Contact Us
Product Details
Product Model: 1-8979-03
Product Brand: AS ONE Corporation
Features
- The fluid flowing into the inner and outer pipes of the double pipe is continuously cooled and heated and discharged due to the temperature difference between the inner and outer fluid.
Spec
- Model number: NH-T1
- Size: Overall height/230mm, Coil diameter/112mm
- Heat transfer area: 0.037m2
- Material: Fluororesin
- Mounting section tube diameter (inside tube, outside tube): Outer diameter φ6mm, Inner diameter φ4mm
- Heat exchanging section tube diameter: Tube/φ6mm (Outer diameter), φ4mm (Inner diameter) outside tube/φ10mm (Outer diameter), φ8mm (Inner diameter)
- Coil height: 230mm
- Coil length: 2.0m
- Number of turns: 5.5
