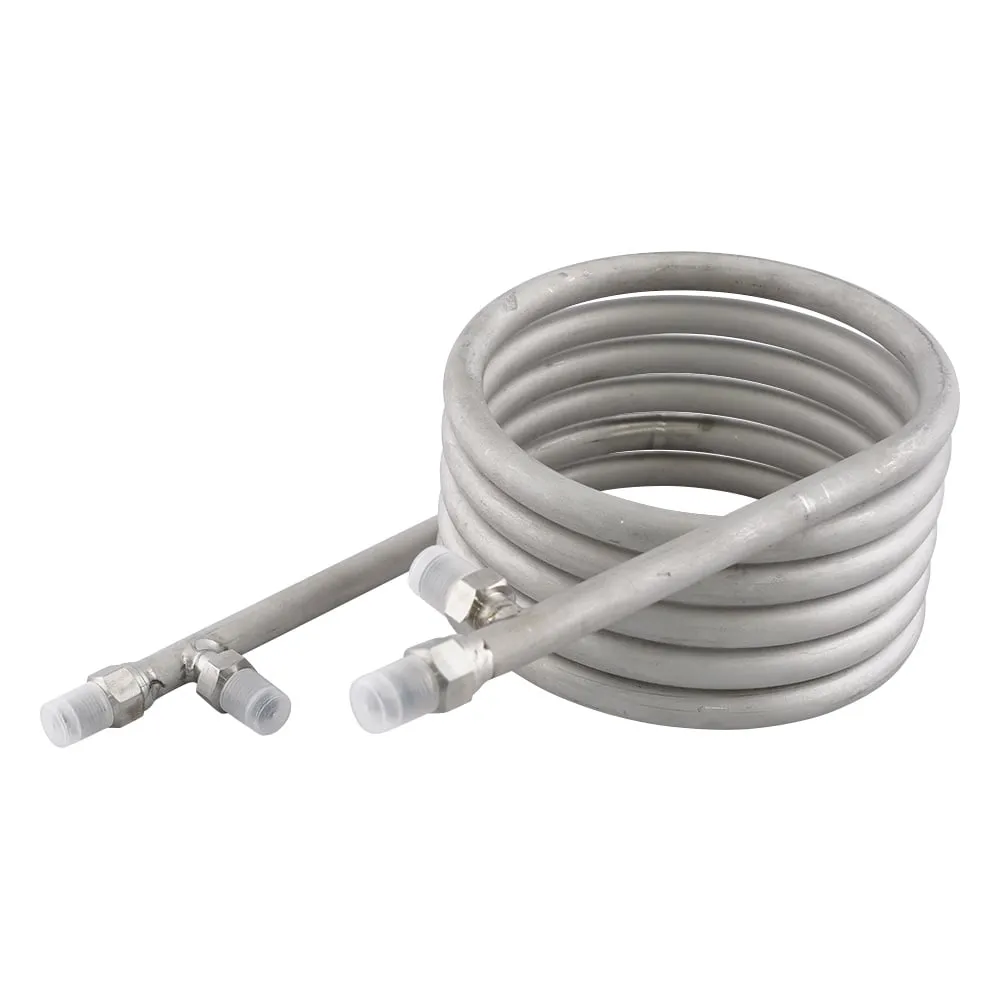

1-8979-01 Double-Pipe Heat Exchanger NH-S1
Product Description
Product Model: 1-8979-01Product Brand: AS ONE Corporati […]
Contact Us
Product Details
Product Model: 1-8979-01
Product Brand: AS ONE Corporation
Features
- The fluid flowing into the inner and outer pipes of the double pipe is continuously cooled and heated and discharged due to the temperature difference between the inner and outer fluid.
Spec
- Model number: NH-S1
- Size: Overall height/230mm, Coil diameter/112mm
- Heat transfer area: 0.037m2
- Material: Stainless steel (SUS304)
- Mounting section tube diameter (inside tube, outside tube): PT1/8
- Coil height: 71mm
- Coil length: 2.0m
- Number of turns: 4
