Features

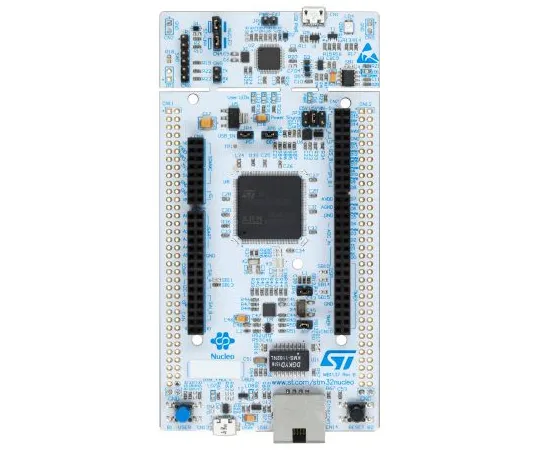

• NUCLEO-F207ZG Nucleo-144 Development Board. The STM32 Nucleo-144 board provides an affordable and flexible way for ***rs to build prototypes with the STM32 F2 series microcontroller. You can choose from the combinations of performance, power consumption and features. The STMicroelectronics Zio connector, which is an extension of Arduino Uno, provides access to more peripherals, and with the ST morpho headers expands the functionality with a choice of shields. The integrated ST-LINK/V2-1 debugger/programmer comes with the STM32 comprehensive software HAL library, software examples, as well as direct access to the ARM mbed on-line resources. Features. On-board with STM32F207ZGT6 microcontroller on LQFP144 package Full access to all STM32 Inputs/Outputs with ST Zio connector (Arduino Uno Revision 3 connectivity support) and ST morpho extension pin headers ARM mbed-enabled (mbed.org) On-board ST-LINK/V2-1 debugger/programmer with SWD connector Virtual Com port, Mass storage, and Debug port interfaces supported on USB Flexible board power supply USB OTG or device full speed with Micro-AB connector IEEE-802.3-2002 compliant Ethernet connector Three LEDs: Power LED, USB communication, User LED USER and RESET Push Buttons 32.768 KHz crystal oscillator Supported by Integrated Development Environments (IDEs)
