63-5178-64 STMicroelectronics STM32 Nucleo-144 MCU Development Board NUCLEO-F303ZE NUCLEO-F303ZE
Electronic/Electrical Parts and Controll Equipments

63-5178-64 STMicroelectronics STM32 Nucleo-144 MCU Development Board NUCLEO-F303ZE NUCLEO-F303ZE

model: 63-5178-64
brand: STMicroelectronics

Product Description

Product Model: 63-5178-64Product Brand: STMicroelectron […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 63-5178-64
Product Brand: STMicroelectronics

Features

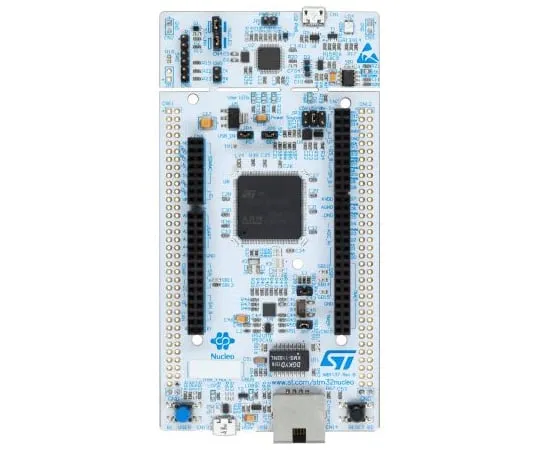

  • NUCLEO-F303ZE Nucleo-144 Development Board. This Nucleo -144 development board is supplied fitted with an STM32F303ZET6 microcontroller. The ST Zio connector provides access to more peripherals, and with the ST morpho headers expands the functionality with a choice of shields. The integrated ST-LINK/V2-1 debugger/programmer comes with the STM32 comprehensive software HAL library, software examples, as well as direct access to the ARM mbed on-line resources. Features. STM32F303ZET6 72MHz Cortex-M4F core microcontroller with 512KB Flash memory, 80KB Parity SRAM Full access to all GPIO with ST Zio connector (Arduino Uno Rev 3 Shield connectivity support) and ST morpho extension pin headers ARM mbed Enabled (mbed.org) ST-LINK/V2-1 debugger/programmer with SWD connector Virtual COM port, Mass storage, and Debug port interfaces supported on USB Flexible board power supply USB OTG or device full speed with Micro-AB connector IEEE-802.3-2002 compliant Ethernet connector 3 x LEDs: Power, USB communication, User USER and RESET Push Buttons 32.768 KHz crystal oscillator Supported by Integrated Development Environments (IDEs)

Spec

  • Quantity:1piece
  • Classification : Development Board
  • Kit Name : STM32 Nucleo-144
  • Technology : MCU
  • Device Core : ARM Cortex M4F
  • Processor Family Name : STM32F3
  • Processor Part Number : STM32F303ZET6
  • Processor Type : MCU
  • CODE No.:917-3762
