Features

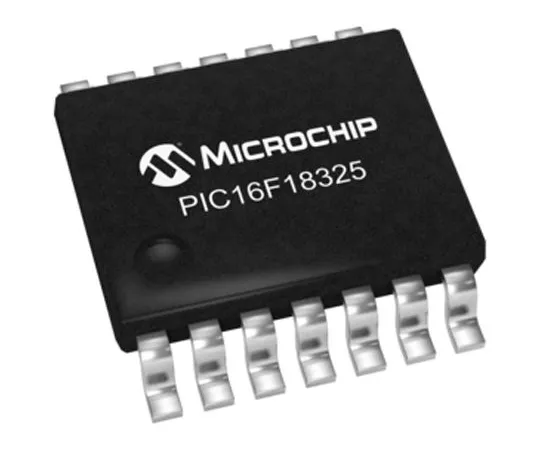

• PIC16F18325/18326/18345/18346 8-Bit Microcontrollers. The PIC16F range of Microcontrollers from Microchip are 8-bit MCUs that incorporate Microchip s PIC® architecture in various pin and package options. PIC16F18325/18345 Microcontrollers are based on Microchip s Enhanced Mid-Range core and include new Low-Power features. IDLE and DOZE modes have been added along with Peripheral Module Disable, this allows peripherals to be removed from the power rail and clock tree for zero power leakage. Microcontroller Features. 8 MIPS Max. CPU Speed 49 Instructions 16 Level Hardware Stack Interrupt Capability Internal Oscillator 12 or 18 I/O Pins Power-On Reset (POR) Configurable Power-Up Timer (PWRTE) Brown-Out Reset (BOR) and Low-Power Brown-Out Reset (LPBOR) Ext***ed Watchdog Timer (WDT) In-Circuit Serial Programming (ICSP) In-Circuit Debug (ICD) Low voltage Programming (LVP) Peripheral Pin Select (PPS). Power-Saving Features. Peripheral Module Disable (PMD) – Ability to disable un***d peripherals for minimal power consumption SLEEP, IDLE and DOZE Low-Power Modes Sleep mode: 40 nA @ 1.8 V (typical) Watchdog Timer: 250 nA @ 1.8 V (typical) Secondary Oscillator: 300 nA @ 32 kHz Operating Current: 8 μA @ 32 kHz 1.8 V (typical). Peripheral Features. 10-bit Analogue-to-Digital Converter – 11 or 17 channels dep***ing on model 5-Bit Digital-to-Analogue Converter (DAC) Two Comparators (COMP) Voltage Reference Four Configurable Logic Cells (CLC) Two Complementary Waveform Generators (CWG) Four Capture/Compare/PWM (CCP) modules Two 10-bit PWMs Numerically Controlled Oscillator (NCO) EUSART – RS-232, RS-485 and LIN compatible Two Master Synchronous Serial Ports (MSSP) – I2C, SMBus, PMBus compatible Data Signal Modulator (DSM) Four 8-bit Timers with Hardware Limit Timer (HLT) Three 16-bit Timers
