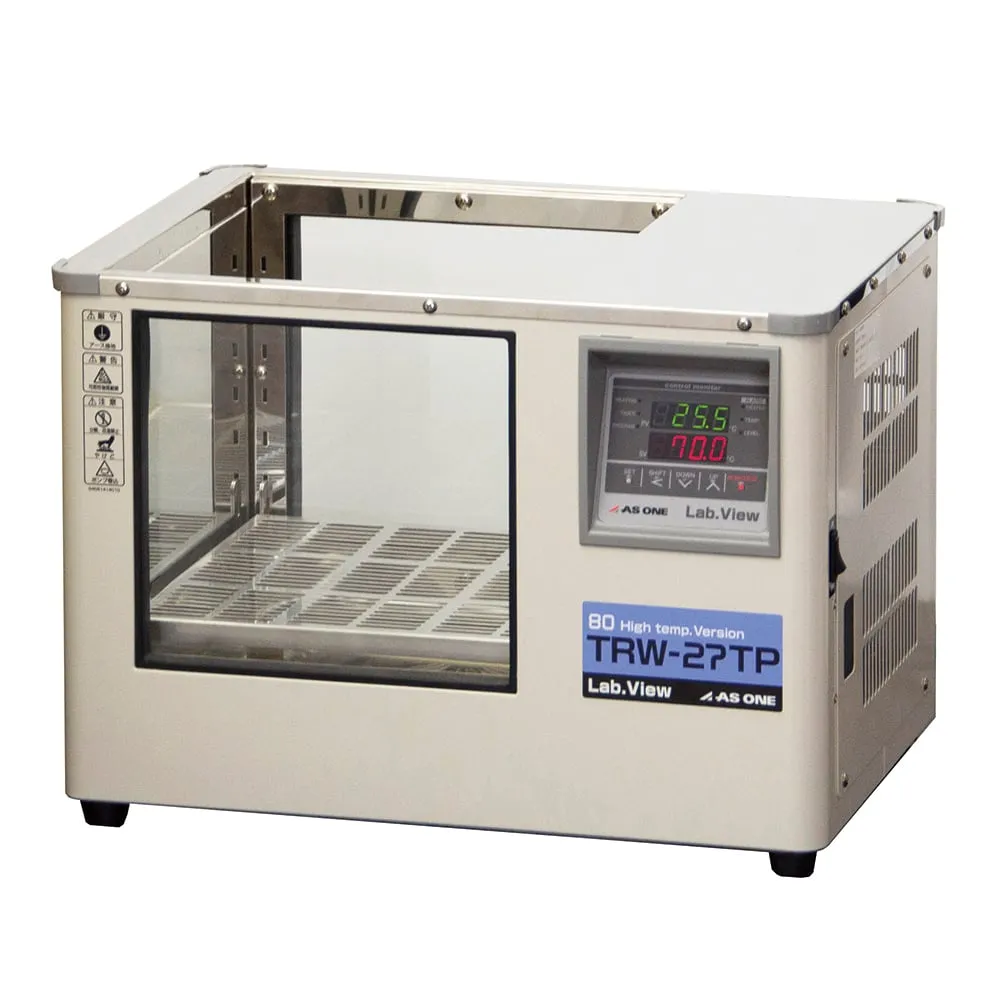

1-8970-04 Labview 27L TRW-27TP
Product Description
Product Model: 1-8970-04Product Brand: AS ONE Corporati […]
Contact Us
Product Details
Product Model: 1-8970-04
Product Brand: AS ONE Corporation
Features
- The front and rear observation windows make it convenient for observing and measuring samples.
- The thickness at the top of the frame is 25 mm, improving visibility.
- Can be connected to Thermo Rad to improve stability near room temperature.
- In addition to microcomputer PID control, efficient stirring in the tank by a magnet pump achieves high temperature distribution accuracy.
- The program operation function can input up to 8 steps, and you can also set the number of times to repeat the input steps.
- It is equipped with a recorder output and an alarm output, so you can stop other equipment or start a backup system in case of an abnormality.
- The safety device ***s a double lock mechanism consisting of two indep***ent circuits, and is equipped with a float-type air cooking prevention and an abnormal buzzer warning.
Spec
- Temperature settings range: Room temperature +5 - 80℃
- Chamber capacity: 27L
- Temperature distribution accuracy: +/- 0.3℃ or less (value in the setting water temperature 40℃ and room temperature 20℃)
- Pump capacity (50/60Hz): 11/12L/min
- Temperature control system: Heater PID control (SSR output)
- Safety mechanism Self-diagnosis function, Electrical leakage breaker, Abnormal heating prevention device, Float type no-water burning prevention, External output, Timer function, Program function
- Power supply: 100VAC, 50/60Hz
- Maximum operation current: 14A
- Power cord: 3P plug + adapter
- Material: Body/Steel, Water tank/SUS304 + Glass
- Weight: 22Kg
- Accessories: Shelf board x 1, Shelf board rest x 4 pieces, Stand x 1 piece, Clamp x 1 piece, Clamp holder x 1 piece
- External dimensions: 505 x 360 x 370mm
- Internal dimensions: 300 x 300 x 300mm
- Effective internal dimensions: 225mm
- *Effective inside dimensions indicate the maximum depth when using shelf board. *Cooling function is not available in this machine single. By combined *** of optional cooling coil and cooling water circulation apparatus, etc., it can be controlled at room temperature or less.
- Model number: TRW-27TP
