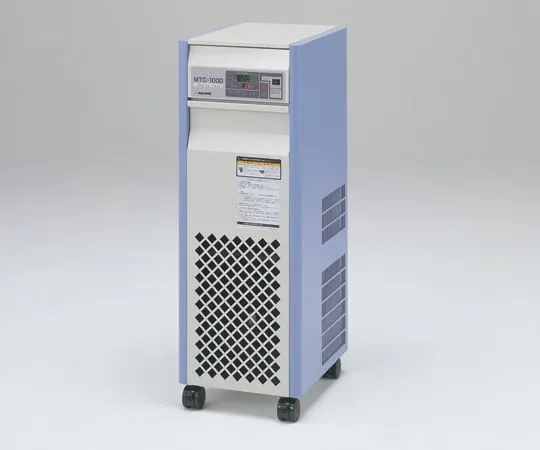

1-8968-01-28 Constant Water Circulation System 1000 W with Pre-shipment Validation MTC-1000
Product Description
Product Model: 1-8968-01-28Product Brand: AS ONE Corpor […]
Contact Us
Product Details
Product Model: 1-8968-01-28
Product Brand: AS ONE Corporation
Features
- The high head pump (maximum flow rate 40.7/44.6 L/min, maximum head 13.6/19.1 m) achieves smooth circulation even when the resistance of the circulation destination is large.
- A bypass valve is provided as standard, so the flow rate can be roughly adjusted.
- Since pure water circulation is also possible, it can be ***d as a cooling device for semiconductor manufacturing equipment.
- External operation/external alarm output terminal, external alarm input terminal and remote control terminal are equipped as standard.
- Operation can be automatically resumed even in the event of a power failure by the power failure recovery function.
Spec
- Validated products are Azuwan original services that conduct FAT (Factory Acceptance Test) at Azuwan before shipping.
- Validate (FAT) before shipping.
- After receiving the order, a FAT instruction form (plan) is sent to the ***r, and after the signature is returned, the FAT is performed.
- App***ix: FAT report/Calibration Certificate of ***d measuring instrument copied
- *I am attaching Azwan's original FAT instruction manual (see the sample at the bottom left of the Screen).
- Temperature point: 37 degrees C 1 point, liquid pressure gauge and flow meter required
- Circulation system: closed system countercirculation
- Performance
- External circulation capacity (50/60 Hz): maximum flow rate 40.7/44.6 L/min, maximum head 13.6/19.1 m (* Performance of the pump alone/at room temperature of 20 degrees C, 50 Hz and no load.)
- Cooling capacity: 1000 W at 20 degrees Celsius (room temperature: 20 degrees Celsius)
- Function
- Temperature setting and display: Sheet key input and digital display
- Safety features: Ground fault breaker, Refrigerator Overload, High pressure switch, Circulation pump Overcurrent protection, Water level warning
- External input/output: external alarm output terminal, external operation output terminal, remote control terminal, external alarm input terminal
- component equipment
- Refrigerator: 500 W
- Refrigerant: R 407 C
- External circulation connection port: discharge port/return port both, diameter Rc 3/4
- Liquid tank: about 16 L stainless steel
- Electrical properties
- Power supply: 100 VAC 50/60 Hz
- Power cord length: 2 m (3P plug + adapter)
- Maximum operating current: 8 A
- External dimensions: 360 x 460 x 1020 mm
- Weight: 55 kg
- Temperature control range (deg. C): 10 ~ 30
- *Exterior material SUS 430 [No. 4] specifications can also be manufactured. Please inquire.
- Local validation services (IQ/OQ) are also available. Please contact us.
- *The on-site validation service is a service that performs installation qualification (IQ) and operational performance qualification (OQ) at the installation site and submits an inspection form.
- *If you would like to request a local IQOQ, please contact us separately. We will need your installation address for the estimate.
