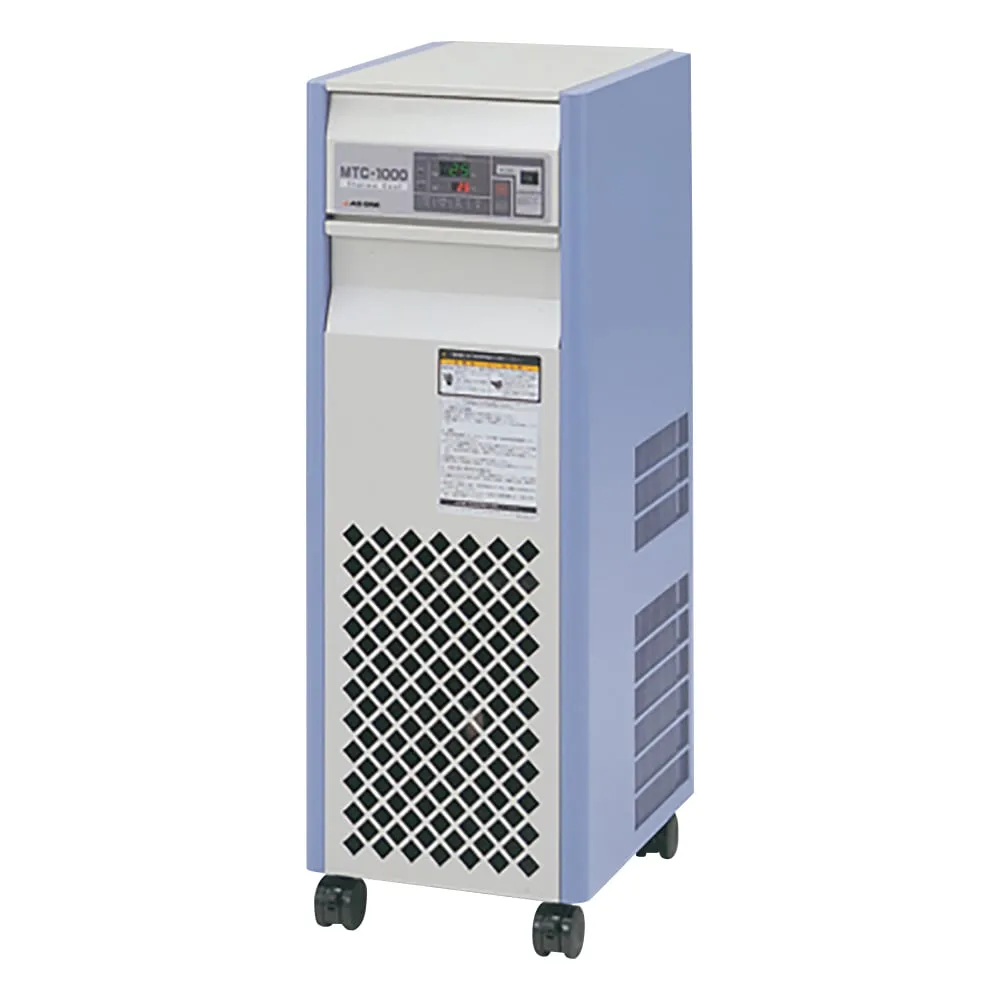

1-8968-01-22 Constant Water Circulation Device 1000 W with Pre-Shipment Inspection Document MTC-1000
Product Description
Product Model: 1-8968-01-22Product Brand: AS ONE Corpor […]
Contact Us
Product Details
Product Model: 1-8968-01-22
Product Brand: AS ONE Corporation
Features
- High lift pump (maximum flow 40.7/44.6 L/min, maximum lift 13.6/19.1 m) achieves smooth circulation even when the resistance of the circulation destination is large.
- Equipped with a bypass valve as standard, allowing rough adjustment of flow rate.
- Pure water circulation is also possible, so it can be ***d as a cooling device for semiconductor manufacturing equipment.
- External operation, external alarm output terminal, external alarm input terminal and remote control terminal are provided as standard equipment.
- The power failure recovery function can automatically resume operation in the event of a power failure.
Spec
- Circulation system: Closed system counter circulation
- Performance
- External Circulation Capacity (50/60Hz): Maximum Flow: 40.7/44.6 L/min, Maximum Pump Head: 13.6/19.1 m(* Performance of a single pump/at room temperature of 20°C/50 Hz/no load.)
- Cooling Capacity: 1000 W at Solution Temperature 20°C (Room Temperature 20°C)
- Function
- Temperature Setting/Display: Sheet Key Input/Digital Display
- Safety Functions: Leakage Breaker, Refrigerator Overload, High Pressure Switch, Circulation Pump Overcurrent Protection, Water Level Alarm
- External Input/Output: External Warning Output Terminal, External Operation Output Terminal, Remote Control Terminal, External Warning Input Terminal
- component equipment
- Freezer: 500 W
- Coolant: R407C
- External Circulation Connection Port: Both Discharge Port and Return Port, Diameter Rc3/4
- Liquid Tank: Stainless Steel Approx. 16 L
- electrical characteristic
- Power: 100 VAC 50/60Hz
- Power Cord Length: 2 m (3P Plug + Adapter)
- Maximum operating current: 8 A
- External Dimensions: 360 x 460 x 1020 mm
- Weight: 55 kg
- Temperature Control Range (°C): 10~30
- *Exterior material SUS430[No. 4] specification can also be manufactured. Please contact us.
- This product is compatible with the validation service (IQ/OQ). Please contact us.
- *The validation service is a service where installation qualification (IQ) and operation qualification (OQ) are performed at the customer's site and an inspection report is submitted.
Related product recommendations
You may also be interested in the following products
laboratoryinstruments
65-6836-54 Dividing Receiver 15/25-15/25 Regular Sliding Set, for Reducing Pressure, Curved Tube Angle 105°, 3 Pairs 1848-01-1
model: 65-6836-54
brand: VIDTEC
laboratoryinstruments
63-1292-21 Syringe Accessory 0.5 μL-500 μL REPEATING ADAPTOR RAX REPEATING ADAPTOR 031930
model: 63-1292-21
brand: SGE Analytical Science
laboratoryinstruments

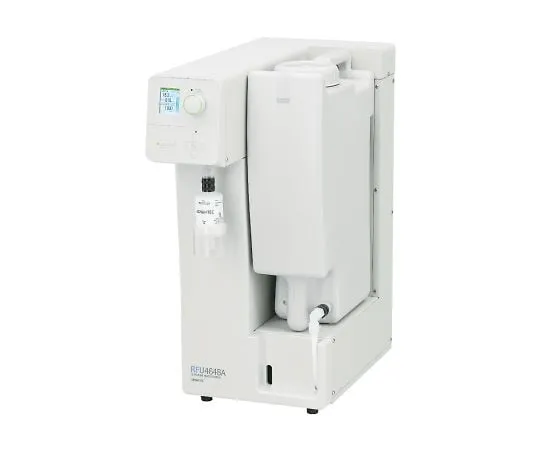

64-1027-88 ［Discontinued］Super pure water Manufacturing Equipment Batch Type, Standard RFU414BA
