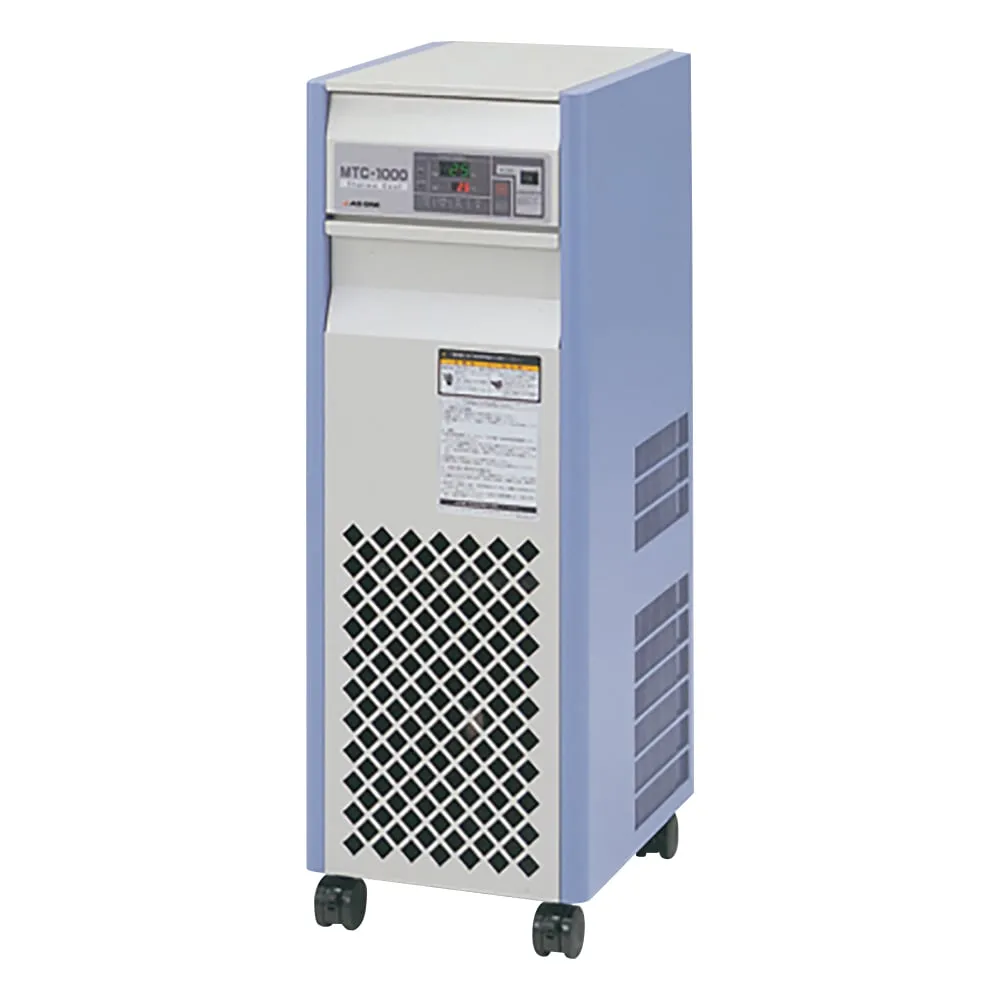

1-8968-01 Constant-Temperature Water Circulator 1000W MTC-1000
Product Description
Product Model: 1-8968-01Product Brand: AS ONE Corporati […]
Contact Us
Product Details
Product Model: 1-8968-01
Product Brand: AS ONE Corporation
Features
- The high head pump (maximum flow rate 40.7/44.6 L/min, maximum head 13.6/19.1 m) provides smooth circulation even when the resistance at the circulation destination is large.
- A bypass valve is provided as standard, so the flow rate can be roughly adjusted.
- Since pure water circulation is also possible, it can be ***d as a cooling device for semiconductor manufacturing equipment.
- External operation/external alarm output terminal, external alarm input terminal and remote control terminal are equipped as standard.
- Operation can be automatically resumed even in the event of a power failure by the power failure recovery function.
Spec
- Model number: MTC-1000
- Circulation method: Sealed system circulation
- The value is when external circulation capacity (50/60Hz) is at (room temperature 20℃, 50Hz, no impact. ) : Maximum flow 40.7/44.6L/min, Maximum head 13.6/19.1m (*the performance is when using pump single)
- Temperature settings, display: Sheet key input, digital display
- Safety mechanism Electrical leakage breaker, frozen machine overload, high pressure switch, circulation pump overcurrent protection, water level alarm
- External input, external output: External alarm output terminal, external operation output terminal, terminal for remote control, terminal for external alarm input
- Refrigerating machine: 470W
- Refrigerant: R407C
- External circulation connection port: Discharge port/return port both mouth diameter Rc3/4
- Liquid bath: Stainless steel approximately 16L
- Power supply: 100VAC 50/60Hz
- Power cord length: 2m (3P plug, adapter)
- Maximum operation current: 8A
- External dimensions: 360 x 460 x 1020mm
- Weight: 55kg
- Temperature adjustment range (℃): 10 - 30
- Cooling capacity: 1000W at liquid temperature 20℃ (room temperature 20℃)
- RoHS3 (EU)2015/863 Certificates can be issued
