Features

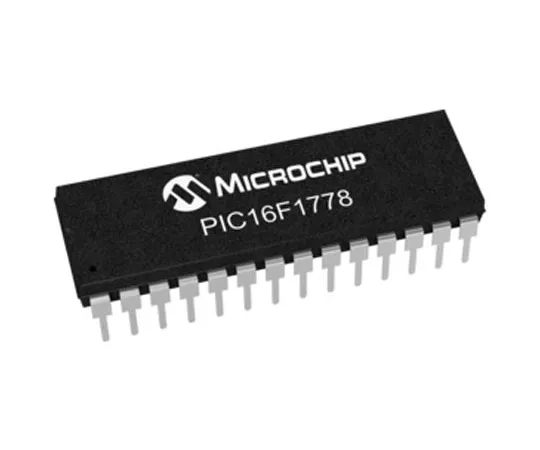

• PIC16F1773/1776/1777/1778/1779 8-Bit Microcontrollers. The PIC16F177x family of Microcontrollers are peripheral rich MCUs based upon Microchip s Enhanced Mid-Range Core designed for a variety of functions, in particular SMPS applications. These devices offer the capability of connecting the on-board peripherals internally to create closed loop systems without the need to *** pins or any additional PCB area. Microcontroller Features. 8 MIPS Max. CPU Speed Enhanced Mid-range Core with 49 Instructions, 16 Stack Levels Low-Current Power-on Reset (POR) Configurable Power-up Timer (PWRT) Brown-out Reset (BOR) with Selectable Trip Point Ext*** Watchdog Timer (EWDT) eXtreme Low-Power (XLP) features Precision Internal Oscillator. Analogue Peripherals. 10-Bit Analogue-to-Digital Converter (ADC) – 17 or 28 channels dep***ing on model Operational Amplifiers – 3 or 4 dep***ing on model High-Speed Comparators – 6 or 8 dep***ing on model Digital-to-Analogue Converters (DAC) – 3 or 4 dep***ing on model Voltage Reference Zero-Cross Detector (ZCD) Programmable Ramp Generators (PRG) – 3 or 4 dep***ing on model Two High-Current Drive I/Os - up to 100 mA sink or source @ 5V. Digital Peripherals. Four Configurable Logic Cells (CLC) - integrated combinational and state logic Complementary Output Generators (COG) – 3 or 4 dep***ing on model Capture/Compare/PWM (CCP) Modules – 3 or 4 dep***ing on model Pulse-Width Modulator (PWM) – 3 or 4 dep***ing on model Data Signal Modulators (DSM) – 3 or 4 dep***ing on model Peripheral Pin Select (PPS) Serial Communications - Enhanced USART (EUSART), SPI, I2C™, RS-232, RS-485, LIN compatible
