Features

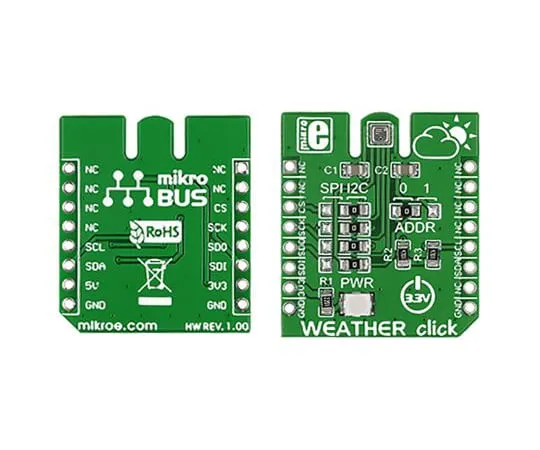

• Click board comes with the header strips soldered. Weather click mikroBUS™. The Click accessory modules plug into the MikroBUS sockets in MikroElektronika microcontroller development boards. The Weather click add-on board features the Bosch BME280 sensor providing accurate measurement of humidity, barometric pressure and temperature. Temperature measurement range: -40 to +85°C Humidity measurement range: 0 to 100% RH Barometric pressure measurement range: 300 to 1100hPa Three operating modes: Sleep, Forced and Normal Sleep mode: no operation, all registers accessible, lowest power, selected after startup Forced mode: perform one measurement, store results and return to sleep mode Normal mode: continuous cycling of measurements and inactive periods Communication: serial I²C, SPI Serial interface selected by jumper link Two I²C addresses available, selected by jumper link Supported by all MikroElektronika compilers Power supply: +3.3Vdc Dimensions: 28.6 x 25.4 x 3.3mm Applications: Home automation, fitness monitors, weather forecasting, vertical movement detection, remote sensing for the Internet of Things (IoT)
