Features

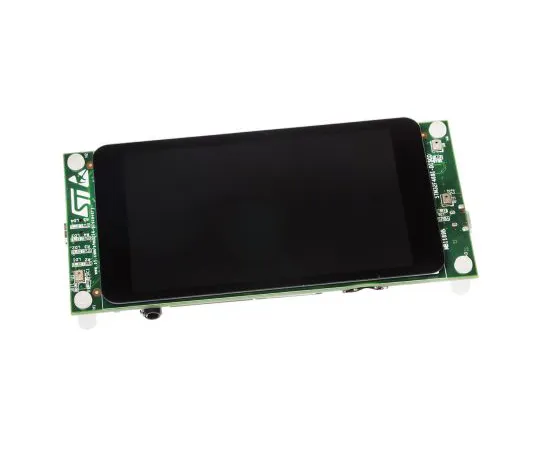

• Discovery Kit for STM32F469NI Microcontroller. From STMicroelectronics, the STM32F469I-DISCO Discovery Kit features an STM32F469NI microcontroller with STM32 ARM Cortex-M4 core, ART Accelerator™, and Chrom-ART Accelerator™. The integrated microcontroller is a high-performance MCU with DSP and FPU instructions. This development kit offers you the opportunity to quickly and easily evaluate STM32 MCUs. It has a wide range of connectivity options and a high degree of integration. With a number of expansion connectors and Arduino UNO, a range of add-on boards can easily be connected to this kit. An embedded ST-LINK/V2-1 debugger/programmer is included, supporting USB remuneration capability for USB virtual COM port, mass storage, or debug. This discovery kit is supplied with a comprehensive suite of free software from the STM32Cube package that makes it easy to progress your development ideas. What's on board?. 180MHz STM32F469NIH6 Cortex-M4F microcontroller with 2MB Flash memory, 324KB RAM On-board 128Mbit (4M x 32-bit) SDRAM memory On-board 128Mbit quad-SPI NOR Flash memory 4in 800 x 480pixel Capacitive Touch TFT colour LCD with MIPI DSI interface On-board CS43L22 stereo audio DAC 3.5mm stereo headphone jack On-board 3 x MEMS digital microphones MicroSD card slot I²C bus extension connector Reset and wake-up pushbuttons 4 x User LEDs USB OTG FS Micro-AB connector ST-LINK/V2-1 USB Mini-B connector 3 x power supply options Arduino UNO v3 Shield headers Comprehensive free software including a variety of examples, part of STM32Cube package mbed-Enabled (mbed.org) Supported by a wide choice of integrated development environments. Applications:. This discovery kit can be ***d in a wide range of projects as it features multi-sensor support, audio, premium graphics, security, memory extension options and some connectivity. It is particularly suited to prototyping and embedded applications. The LCD capacitive touchscreen and audio output make it suitable for *** in embedded industrial and machinery that require a human interface.
