Features

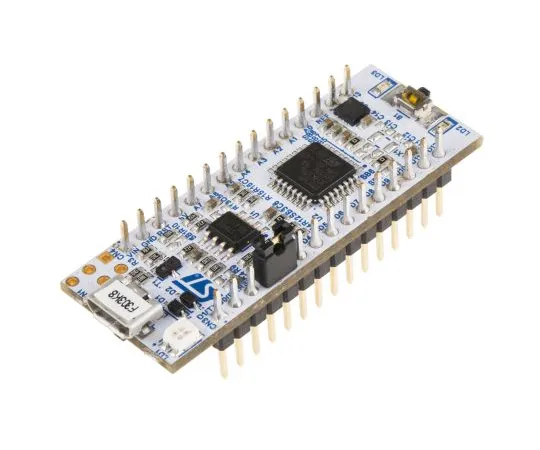

• NUCLEO-F303K8 Nucleo-32 Development Board. The STM32 Nucleo-32 development board provides a flexible way for ***rs to try out new concepts and build prototype applications. The STM32F303K8T6 microcontroller in a 32-pin package offers various combinations of performance, power consumption and features. The Nucleo-32 development board comes with the STM32 comprehensive software HAL library together with various packaged software examples. Features and Benefits - STM32F303K8T6 72MHz Cortex-M4F core microcontroller with 64KB Flash memory, 16KB Parity SRAM - Arduino™ Nano Shield connectivity - On-board ST-LINK/V2-1 debugger/programmer - USB port: Virtual COM port, mass storage, debug port - Power supply from USB or external source - 3 x LEDs: USB communication, power, and ***r application - Reset pushbutton - ARM mbed Enabled (mbed.org) - Supported by Integrated Development Environments (IDE) including IAR™, Keil®, GCC-based IDE STM32F3 Series 32-Bit ARM® Cortex®-M4 Microcontrollers, STMicroelectronics The STM32 F3 series of mixed-signal MCUs with DSP and FPU instructions combines a 32-bit ARM Cortex-M4 core running at 72MHz with an advanced analogue peripheral set. Fast comparators (50ns) Programmable gain amplifiers (4 gain ranges) 12-Bit DACs Fast 12-Bit ADCs (5 MSPS per channel with up to 18MSPS in interleaved mode) Fast 144MHz motor control timers, timing resolution better 7ns
