Features

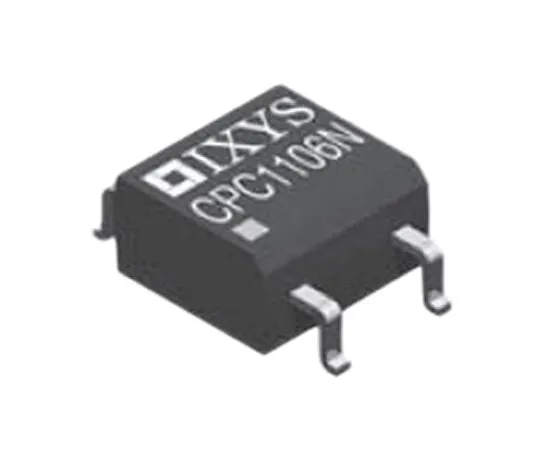

• UL Recognized Component: File E76270 CSA Certified Component: Certificate 1172007 EN/IEC 60950-1 Certified Component: Certificate B 13 12 82667 003. 1-Form-B 1500 Vrms SOP OptoMOS Relay, CPC. These single pole miniature solid state relays have normally closed (1-Form-B) contacts and feature a 4-pin SOP package. They are able to provide 1500 Vrms of input to output isolation by taking advantage of optically coupled MOSFET technology. The outputs have been constructed from efficient MOSFET switches and photovoltaic die and the well-known OptoMos architecture. The input is an efficient infrared LED which provides the optically coupled control. By using a double-moulded vertical construction package, they are able to be one of the smallest relays available. This ****s to provide a board space saving of at least 20% over other larger 4-pin SOP relays. Potential Applications Security: Passive infrared detectors (PIR), data signalling and sensor circuitry Instrumentation: Multiplexers, data acquisition, electronic switching and I/O subsystems Meters (watt-hour, water, gas) Medical equipment: Patient/equipment isolation Aerospace Industrial controls Sensor circuitry Instrumentation Multiplexers Data acquisition. Features 1500Vrms input/output isolation Only 0.5mA of LED current required to operate Small 4-Pin SOP package High reliability Arc-free with no snubbing circuits No EMI/RFI generation Immune to radiated EM fields Wave solderable
