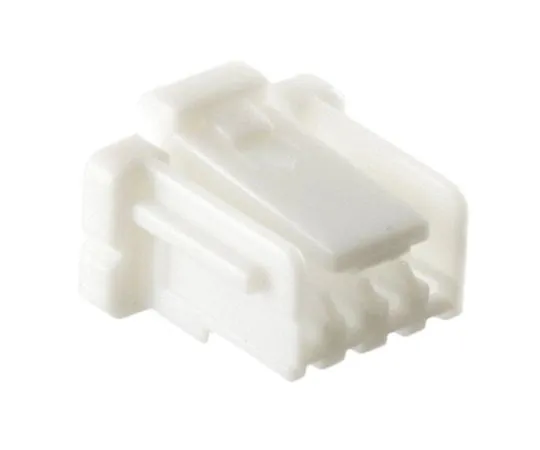

63-5172-38 JST NSH Female Connector Housing, 1mm Pitch, 4 Way, 1 Row NSHR-04V-S
Electronic/Electrical Parts and Controll Equipments

63-5172-38 JST NSH Female Connector Housing, 1mm Pitch, 4 Way, 1 Row NSHR-04V-S

model: 63-5172-38
brand: JST

Product Description

Product Model: 63-5172-38Product Brand: JST Features JS […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 63-5172-38
Product Brand: JST

Features

  • JST 1.0mm NSH Wire to Board Header and Socket Connectors. NSH Series 1.0mm pitch wire-to-board PCB SMT header and cable mount socket connectors with a space saving subminiature design and a low insertion force which is achieved through the *** of a specially constructed spring feature. The NSH 1.0mm connectors feature a latch locking mechanism which produces an audible click when the header and socket are mated. The NSH SMT headers have solder retention and are available with a vertical or right angle mounting configuration. The NSH crimp socket housings accept SLEH crimp socket contacts (see stock number ; 906-0014 906-0014 ).

Spec

  • Quantity:1bag(10pieces)
  • Number of Contacts : 4
  • Number of Rows : 1
  • Pitch : 1mm
  • G***er : Female
  • Mounting Type : PCB Mount
  • Series : NSH
  • For Use With : NSH Series Connector
  • Body Orientation : Straight
  • Length : 6mm
  • Width : 4.2mm
  • Depth : 6.2mm
  • Housing Material : PBT
  • CODE No.:906-0036
