Features

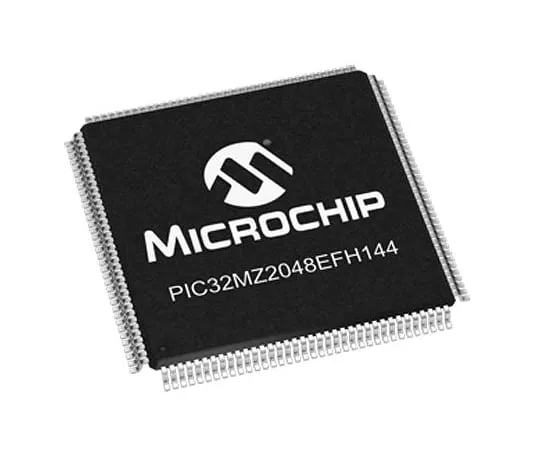

• PIC32MZxxxxEF Embedded Connectivity 32-Bit Microcontrollers. The Microchip PIC32MZxxxxEF family of Microcontrollers are high-performance 32-bit devices based upon the powerful MIPS32® M-Class Core. These second-generation PIC32MZ devices feature an integrated hardware Floating-Point Unit (FPU) to add high performance and lower latency for applications requiring single or double precision maths operations. The FPU combined with an extensive set of on-board peripherals make these MCUs ideal candidates for process-intensive, high-speed applications. The MPLAB® Harmony Integrated Software Framework is Microchip s development platform for PIC32 MCUs. This IDE is an integrated single platform that combines different drivers and libraries together, simplifying development that allows for faster time-to-market. See www.microchip.com/harmony for more information. Microcontroller Features. MIPS32® 32-Bit M-Class Core 200 MHz maximum frequency - 330 DMIPS Floating Point Unit (FPU) for fast single and double-precision maths microMIPS™ mode for up to 35% smaller code size Code-efficient (C and Assembly) architecture Low-power management modes Fail-Safe Clock Monitor (FSCM) Indep***ent Watchdog Timer Programmable PLLs and Oscillator Clock Sources Fast wake-up and start-up. Peripheral Features. Graphics Interfaces Audio Interfaces – communication via I2S, LJ and RJ; control via SPI and I2C Memory Interfaces Crypto Engine with Random Number Generator (RNG) for data encryption/decryption and authentication (AES, 3DES, SHA, MD5 and HMAC) – not available on all models USB 2.0-compliant Hi-Speed On-The-Go (OTG) Controller Two CAN Modules – not available on all models Six UART Modules 4-Wire SPI Modules – 4 or 6, dep***ant on model SQI Module I2C Modules – 4 or 5, dep***ant on model Parallel Master Port (PMP) 10/100 Ethernet with MII/RMII 12-Bit 18 Msps ADC Module – 24, 40 or 48 channels, model dep***ant Two Comparators Temperature Sensor Nine 16-Bit Timers – Can be paired to provide up to 4 32-Bit Timers Nine Output Compare (OC) and Input Compare (IC) Modules Peripheral Pin Select (PPS) Direct Memory Access (DMA) – 12, 16 or 18 channels, dep***ant on model
