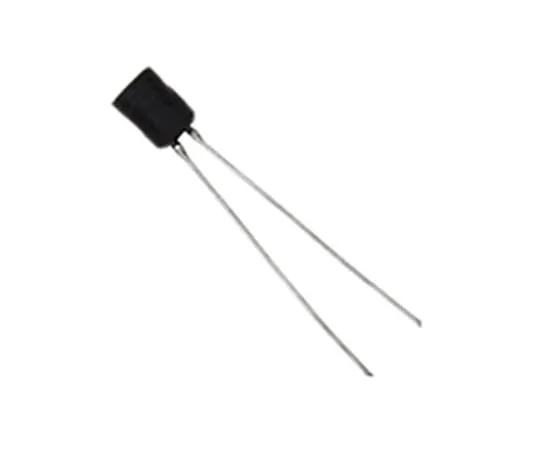

63-5171-98 Murata 220 μH ±10% Radial Inductor, Max SRF:1kHz, 240mA Idc, 2.4Ω Rdc 1100R 11R224C
model:
63-5171-98
brand:
Murata Power Solutions
Product Description
Product Model: 63-5171-98Product Brand: Murata Power So […]
Contact Us
Product Details
Product Model: 63-5171-98
Product Brand: Murata Power Solutions
Features
- 1100 Series Unshielded Inductors. Professional range of Murata unshielded inductors from the 1100 series. Due to the small footprint on these inductors, it makes them ideal for high density applications where the chip inductor will not cope with the power requirements. 1100 Series are general purpose range of inductors suitable for low to medium current applications Radial Mount Up to 3A 1 to 470μH Low DC resistance
Spec
- Quantity：1bag(5pieces)
- Inductance : 220 μH
- Maximum DC Current : 240mA
- Mounting Type : Through Hole
- Maximum DC Resistance : 2.4Ω
- Tolerance : ±10%
- Diameter : 5mm
- Height : 7.5mm
- Dimensions : 5 (Dia.) x 7.5 (H)mm
- Maximum Self Resonant Frequency : 1kHz
- Lead Pitch : 2mm
- Series : 1100R
- Maximum Operating Temperature : +85°C
- CODE No.:905-4964
