Features

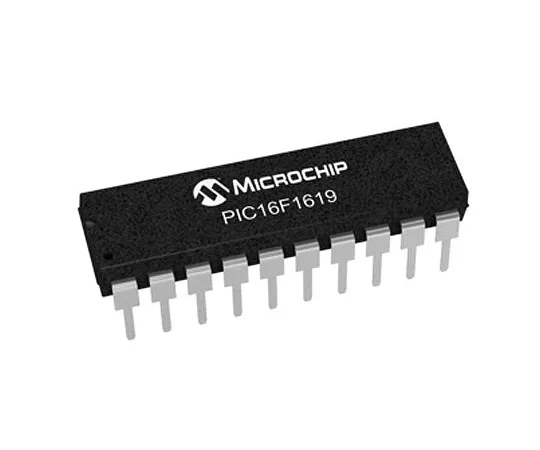

• PIC16F1615/1619 8-Bit Flash Microcontrollers. The PIC16F range of Microcontrollers from Microchip are 8-bit MCUs that incorporate Microchip s PIC® architecture into a variety of pin and package options. PIC16F1615/1619 Microcontrollers are based on Microchip s Enhanced Mid-Range core and integrate a variety of peripherals that make these devices suitable for a wide variety of general purpose and small motor control applications. Microcontroller Features. 32 MHz Max. CPU Speed 49 Instructions 16 Level Hardware Stack Internal Oscillator 12 or 18 I/O Pins Power-On Reset (POR) Power-Up Timer (PWRT) Brown-Out Reset (BOR) Windowed Watchdog Timer (WWDT) In-Circuit Serial Programming (ICSP) In-Circuit Debug (ICD) Low-Voltage Programming (LVP). Peripheral Features. 10-bit Analogue to Digital Converter (ADC) – PIC16F1615 8 Channels; PIC16F1619 12 Channel 8-Bit Digital-to-Analogue Converter (DAC) Voltage Reference Zero-Cross Detect (ZCD) Two Capture/Compare/PWM (CCP) Modules Two Comparators Two 24-bit Signal Measurement Timers (SMT) Angular Timer Cyclic Redundancy Check with Memory Scan (CRC/SCAN) Math Accelerator with Proportional-Integral-Derivative (PID) Zero Cross Detector Voltage Reference Module Four 8-bit Timers with Hardware Limit Timer (HLT) Three 16-bit Timers Peripheral Pin Select (PPS) Complimentary Waveform Generator (CWG) Two Configurable Logic Cell (CLC) Enhanced USART (EUSART) SPI/I2C Serial Communications
