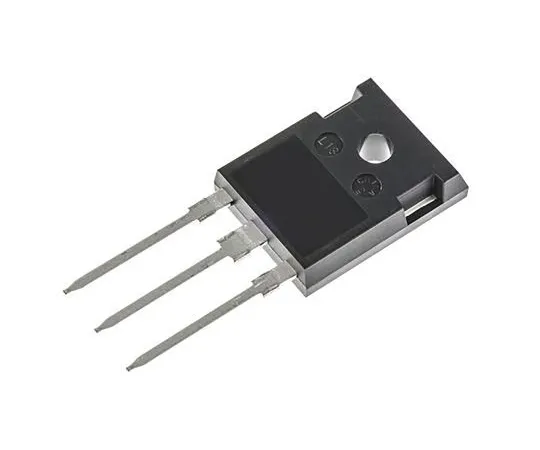

63-5171-63 C2M0160120D SiC N-Channel MOSFET, 19 A, 1200 V, 3-Pin TO-247 Wolfspeed C2M0160120D
Product Description
Product Model: 63-5171-63Product Brand: Wolfspeed Featu […]
Contact Us
Product Details
Product Model: 63-5171-63
Product Brand: Wolfspeed
Features
- Wolfspeed Silicon Carbide Power MOSFETs. Wolfspeed Z-Fet™, C2M™ & C3M™ Silicon Carbide Power MOSFETs. A range of second generation SiC MOSFETs from Cree's power division Wolfspeed which deliver industry-leading power density and switching efficiency. These low-capacitance devices allow higher switching frequencies and have reduced cooling requirements improving overall system operating efficiency. ; Enhancement-mode N-channel SiC technology ; High Drain-Source breakdown voltages - up to 1200V ; Multiple devices are easy to parallel and simple to drive ; High speed switching with low on-resistance ; Latch-up resistant operation
Spec
- Quantity:1piece
- Channel Type : N
- Maximum Continuous Drain Current : 19 A
- Maximum Drain Source Voltage : 1200 V
- Maximum Drain Source Resistance : 196 mΩ
- Maximum Gate Threshold Voltage : 2.5V
- Minimum Gate Threshold Voltage : 2.4V
- Maximum Gate Source Voltage : -5 V, +20 V
- Package Type : TO-247
- Mounting Type : Through Hole
- Pin Count : 3
- Channel Mode : Enhancement
- Category : Power MOSFET
- Maximum Power Dissipation : 125 W
- Typical Turn-On Delay Time : 9 ns
- CODE No.:904-7348
