Electronic/Electrical Parts and Controll Equipments

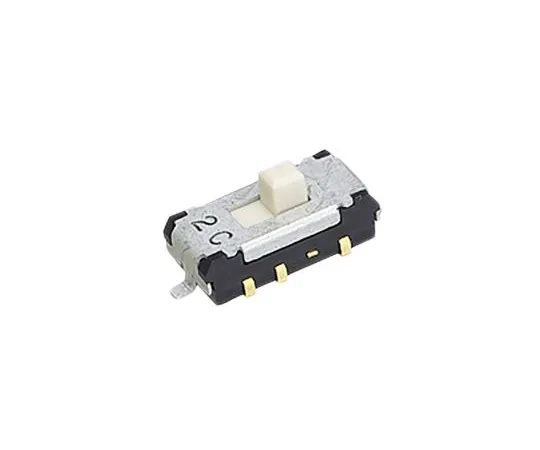

63-5171-22 Surface Mount Slide Switch Double Pole Double Throw (DPDT) Latching 100 mA@ 12 V dc Knob CMS-2202A
model:
63-5171-22
brand:
Copal Electronics
Product Description
Product Model: 63-5171-22Product Brand: Copal Electroni […]
Contact Us
Product Details
Product Model: 63-5171-22
Product Brand: Copal Electronics
Features
- Copal CMS Series Slide Switches (SMD). RoHS compliant Excellent contact stability by twin Gold-plated contact mechanism Load life of 30,000 cycles Compatible with automatic mounting Withstands high soldering temperature Two or three position option available
Spec
- Quantity：1bag(10pieces)
- Contact Configuration : Double Pole Double Throw (DPDT)
- Mounting Type : Surface Mount
- Switch Operation : Latching
- Contact Current Rating : 100 mA@ 12 V dc
- Terminal Type : Gull Wing
- Actuator Type : Knob
- Length : 10.8mm
- Width : 5.4mm
- Depth : 5.2mm
- Dimensions : 10.8 x 5.4 x 5.2mm
- Contact Resistance : 70mΩ
- Mechanical Life : 30000Cycles
- Voltage Rating : 12V dc
- CODE No.:903-9795
