Electronic/Electrical Parts and Controll Equipments

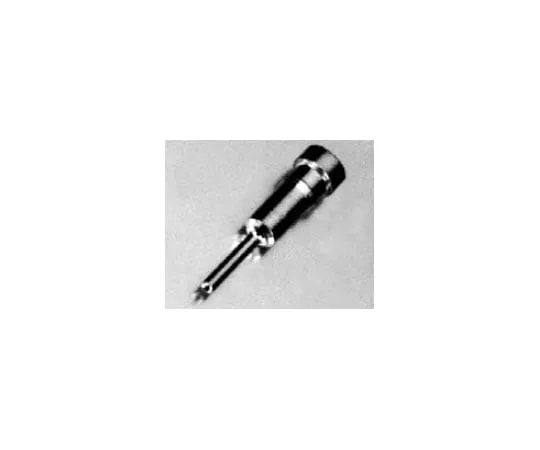

63-3120-08 Socket Pin Compatible Ospin Diameter PHI. 0.45 ~ 0.6 (100 pcs) PD-1
model:
63-3120-08
brand:
MAC EIGHT CO., LTD
Product Description
Product Model: 63-3120-08Product Brand: MAC EIGHT CO., […]
Contact Us
Product Details
Product Model: 63-3120-08
Product Brand: MAC EIGHT CO., LTD
Features
- Material: Internal Contact: Beryllium Copper Body: Brass Plating Specifications: Contact: Gold Body: Tin
- Compatible male pin diameter (φ): 0.45~0.6
- Male pin insertion depth: 3.7
- Print plate mounting hole diameter (φ): 0.6
- Rated current: 1 A
- Contact resistance: 10 mΩ or less
- Operating temperature range: -40 to +125°C
- Number of insertions and removals: 100 or more
- Insertion force (g or more): 70
- Removal force (g or more): 70
- Number of insertions: 100
- Compatible male pin diameter before ***.
Spec
