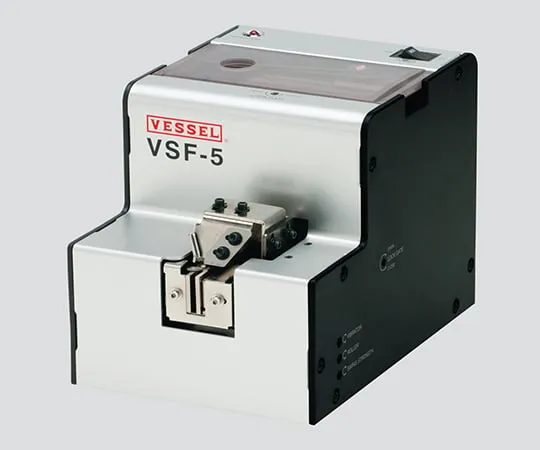

3-5008-01 Screw Feeder VSF-5
Product Description
Product Model: 3-5008-01Product Brand: VESSEL CO., INC. […]
Contact Us
Product Details
Product Model: 3-5008-01
Product Brand: VESSEL CO., INC.
Features
- This screw feeder is compatible with large variety of screws from M1 to M5.
- Feeder is equipped with screw feed sensor which accurately aligns screws on rails and sent out.
- Machine is normally quiet, as drum rotates and vibrates only when it is necessary to feed the screws.
- Feeder is compatible with countersunk screws, pan head screws, truss head screws, washer screws, and other types of screws.
Spec
- Model number: VSF-5
- Size (mm): 126 x 182 x 147
- Weight (kg): 2.2
- Input voltage, current of electricity: DC15V 0.7A
- Applicable screw size: Normal screw/tapping screw M1.0 - M5.0, Screw under-head length maximum 19mm
- Screw capacity: 200cc
- Accessories: AC adapter (AC100 - 240V 50/60Hz), Stopper (for M1.0 - 2.0 1 piece, for M2.5 - 5.0 1 piece), Rail width front portion adjustment plate 70 x 90 x t0.8, t1.0, t1.2, t1.5, t2.0mm 1 sheet for each, Rail width rear portion adjustment plate 20 x 10 x t0.2mm/2sheets, 20 x 10 x t0.5mm/10 sheets, L type hexagonal wrench
- [Reference movies] (① and ② can be found from the movie icon on the left of the screen.)
- ①: https: //youtu.be/JUP9-ejXpq8
- ②: https: //youtu.be/4CcnaZsQrjA
- ③: https: //youtu.be/A6ktzRlvjm0
- ④: https: //youtu.be/m99b_NaSqzI
- ⑤: https: //youtu.be/4ShXVQlB4Vc
- ⑥: https: //youtu.be/r7hqHlQkLx0
- ⑦: https: //youtu.be/7ku7MkxPqG8
- ⑧: https: //youtu.be/3W6a7hNFk_M
- ⑨: https: //youtu.be/eVIsZPYtZkg
- ⑩: https: //youtu.be/TIzdsiYZUL4
- ⑪: https: //youtu.be/0Ms5Q0GQ0Ac
- ⑫: https: //youtu.be/pAQtHFxK5Lk
- ⑬: https: //youtu.be/RG66mDqDguI
