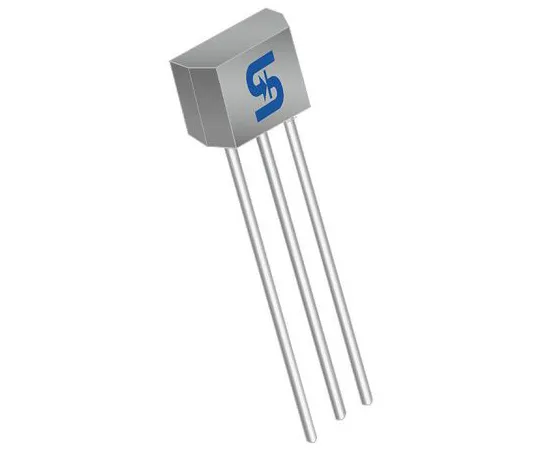

63-5169-74 TSH481CT B0G Taiwan Semiconductor, Linear Hall Effect Sensor, 3-Pin TO-92S TSH481CT B0G
model:
63-5169-74
brand:
Taiwan Semiconductor
Product Description
Product Model: 63-5169-74Product Brand: Taiwan Semicond […]
Contact Us
Product Details
Product Model: 63-5169-74
Product Brand: Taiwan Semiconductor
Features
- Hall Effect Sensor, Taiwan Semiconductor. A linear output Hall Effect magnetic field sensor from Taiwan Semiconductor. The device produces a ratiometric output voltage proportional to the applied magnetic flux density over a range of ±800 Gauss. Supply voltage: 3.0 to 6.5V Supply current: 2.2mA (typ) Bandwidth: 20kHz Magnetic flux range: ±800 Gauss Output span: 3.2V (at Vs 5V)
Spec
- Quantity：1bag(20pieces)
- Magnetic Type : Linear
- Mounting Type : Through Hole
- Pin Count : 3
- Maximum Magnetic Sensor Operating Point : ±800 Gs
- Minimum Operating Supply Voltage : 3 V
- Maximum Operating Supply Voltage : 6.5 V
- Length : 4mm
- Width : 1.52mm
- Height : 3mm
- Dimensions : 4 x 1.52 x 3mm
- Minimum Operating Temperature : -40 °C
- Maximum Operating Temperature : +85 °C
- Package Type : TO-92S
- CODE No.:901-4033
