Electronic/Electrical Parts and Controll Equipments

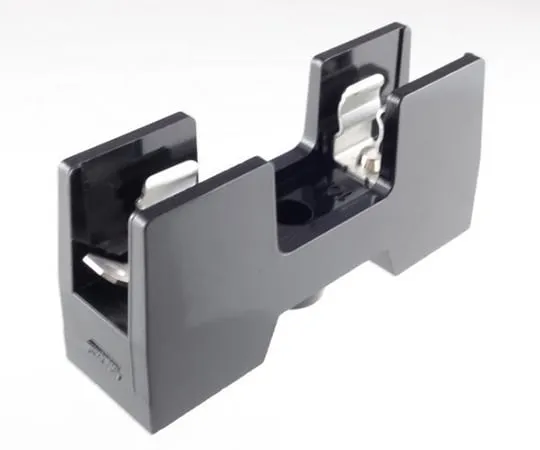

63-3116-56 Base F*** Holder compatible size: phi 6.4 x 30 mm phi 6.35 x 30 mm 1 pole F-3321-N-1P
model:
63-3116-56
brand:
SATO PARTS CO., LTD.
Product Description
Product Model: 63-3116-56Product Brand: SATO PARTS CO., […]
Contact Us
Product Details
Product Model: 63-3116-56
Product Brand: SATO PARTS CO., LTD.
Spec
- Rated 250 V -10 A
- Insulation resistance DC 500 V, 100 Momega or more
- Withstand voltage: 1500 V AC (1 minute)
- Number of & Poles 1
- Main Insulating Phenol (UL 94 V-0)
- Terminal metal fitting insertion terminal (Type 187, t 0.5) Dual soldered terminal
- Body Color Black
- Mounting Screw Tightening Torque 1.2 N/m or Less: M4 Screw
- Compatible f*** tubes, phi 6.4 x 30 mm, phi 6.35 x 30 mm, phi 6.35 x 31.8 mm
