Electronic/Electrical Parts and Controll Equipments

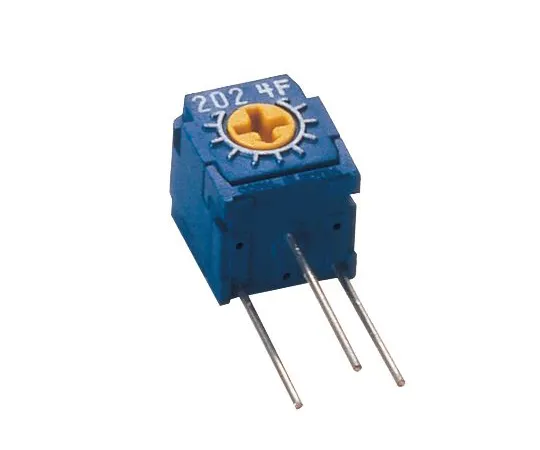

63-5166-16 20kΩ Through Hole Trimmer Potentiometer 0.5W Side Adjust Copal Electronics CT6 Series CT-6EX 20kR
model:
63-5166-16
brand:
Copal Electronics
Product Description
Product Model: 63-5166-16Product Brand: Copal Electroni […]
Contact Us
Product Details
Product Model: 63-5166-16
Product Brand: Copal Electronics
Features
- Copal CT-6 Series. Professional range of Copal side adjustable cermet trimmers from the CT-6 series. The trimmers incorporate a silicon rubber ‘O ‘ ring and a Copper, Tin-plated terminal pin. Silicone rubber 'O' ring Copper, Tin-plated terminal pin
Spec
- Quantity：1bag(5pieces)
- Maximum Resistance : 20kΩ
- Mounting Type : Through Hole
- Number of Turns : 1
- Orientation : Side Adjust
- Power Rating : 0.5W
- Series : CT6
- Termination Style : Solder Pin
- Tolerance : ±10%
- Temperature Coefficient : ±100ppm/°C
- Maximum Voltage Rating : 100 V
- Length : 7mm
- Minimum Operating Temperature : -55°C
- Maximum Operating Temperature : +120°C
- CODE No.:896-7207
