Electronic/Electrical Parts and Controll Equipments

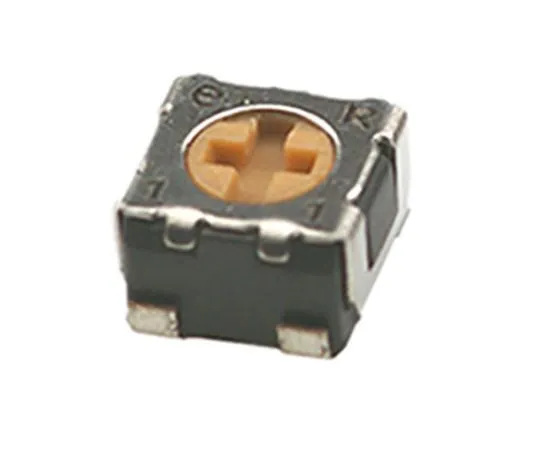

63-5165-94 2kΩ SMD Trimmer Potentiometer 0.125W Top Adjust Copal Electronics ST-32 Series ST-32EA 2kR
model:
63-5165-94
brand:
Copal Electronics
Product Description
Product Model: 63-5165-94Product Brand: Copal Electroni […]
Contact Us
Product Details
Product Model: 63-5165-94
Product Brand: Copal Electronics
Features
- Copal ST-32 Series. Professional range of Copal cermet trimmers from the ST-32 series. A key feature of the trimmers is the sealed construction. The trimmers incorporate J-Hook terminals. Rotor with cross slot Leaded terminals J-Hook terminals Sealed
Spec
- Quantity：1bag(5pieces)
- Maximum Resistance : 2kΩ
- Mounting Type : Surface Mount
- Number of Turns : 1
- Orientation : Top Adjust
- Power Rating : 0.125W
- Series : ST-32
- Termination Style : Solder Pin
- Tolerance : ±20%
- Temperature Coefficient : ±100ppm/°C
- Maximum Voltage Rating : 15.8 V
- Length : 3.4mm
- Minimum Operating Temperature : -55°C
- Element Material : Cermet
- CODE No.:896-7125
