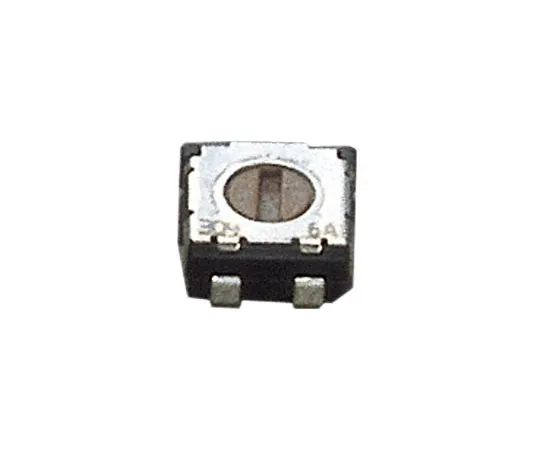

63-5165-86 50kΩ SMD Trimmer Potentiometer 0.25W Top Adjust Copal Electronics ST-4 Series ST-4EA 50kR
model:
63-5165-86
brand:
Copal Electronics
Product Description
Product Model: 63-5165-86Product Brand: Copal Electroni […]
Contact Us
Product Details
Product Model: 63-5165-86
Product Brand: Copal Electronics
Features
- Copal ST-4 Series. Professional range of Copal cermet trimmers from the ST-4 series. A key feature of the trimmers is the sealed construction and the ability to have either flow or reflow soldering. Flow/Reflow soldering Sealed construction Automatic mounting is possible
Spec
- Quantity：1bag(5pieces)
- Maximum Resistance : 50kΩ
- Mounting Type : Surface Mount
- Number of Turns : 1
- Orientation : Top Adjust
- Power Rating : 0.25W
- Series : ST-4
- Termination Style : Solder Pin
- Tolerance : ±20%
- Temperature Coefficient : ±100ppm/°C
- Maximum Voltage Rating : 112 V
- Length : 5mm
- Minimum Operating Temperature : -55°C
- Element Material : Cermet
- CODE No.:896-7087
