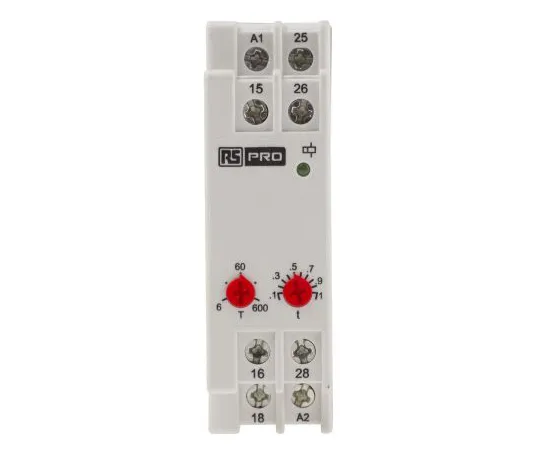

63-5165-55 RS Pro True Off Delay Single Timer Relay, Screw, 0.6 → 600 s, DPDT, 2 Contacts, DPCO, 24 → 240 V ac/dc 896-6844
Product Description
Product Model: 63-5165-55Product Brand: RS PRO Features […]
Contact Us
Product Details
Product Model: 63-5165-55
Product Brand: RS PRO
Features
- RS Pro True Off Delay Time Delay Relay- 22.5 mm. RS Pro True Off delay time delay relay is a multi-voltage, multi-range timer that is compact in size and suitable for DIN Rail mounting. Power OFF delay 22.5 mm width DIN Rail mounting DPCO output relay 0.6 s to 600 s timing range LED indication for power and relay status 24-240 V ac/dc supply voltage IP20 (terminals), IP40 (enclosure) protection
Spec
- Quantity：1piece
- Supply Voltage : 24 → 240 V ac/dc
- Time Range : 0.6 → 600 s
- Mode of Operation : True Off Delay
- Mounting Type : DIN Rail
- Number of Timer Functions : Single
- Number of Contacts : 2
- Time Increment : Seconds
- Power Supply : External
- Contact Configuration : DPDT
- Current Maximum : 5 A
- Terminal Type : Screw
- Minimum Voltage : 24 V ac/dc
- Maximum Voltage : 240 V ac/dc
- Width : 75mm
- CODE No.:896-6844
