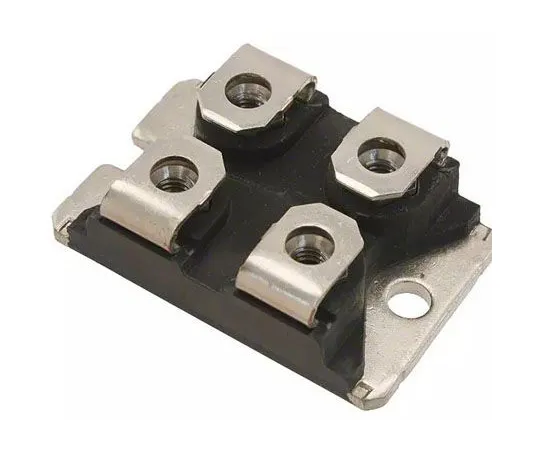

63-5163-98 Ohmite TGH Series Screw Termination Thick Film Panel Mount Resistor, 1mΩ ±1% 100W TGHGCR0010FE
Product Description
Product Model: 63-5163-98Product Brand: Ohmite Features […]
Contact Us
Product Details
Product Model: 63-5163-98
Product Brand: Ohmite
Features
- Ohmite TGHG Series Current Sense Resistors. Ohmite TGHG Series precision current sense resistors *** state of the art technology to provide highly reliable, non-inductive performance. This resistor is ideal for many current monitoring and control applications. Features ; Benefits:. Resistance values beginning at 0.5mΩ Non Inductive Four terminal Kelvin connection SOT 227 Package Four terminals to isolate measurement path from current flow path Accuracy in a high power package
Spec
- Quantity：1piece
- Resistance : 1mΩ
- Power Rating : 100W
- Series : TGH
- Tolerance : ±1%
- Technology : Thick Film
- Termination Style : Screw
- Minimum Operating Temperature : -55°C
- Maximum Operating Temperature : +155°C
- Maximum Temperature Coefficient : <+500 ppm/°C, <+60 ppm/°C
- Temperature Coefficient : Maximum of <+500 ppm/°C, Maximum of <+60 ppm/°C
- Overall Height : 12mm
- CODE No.:893-3368
