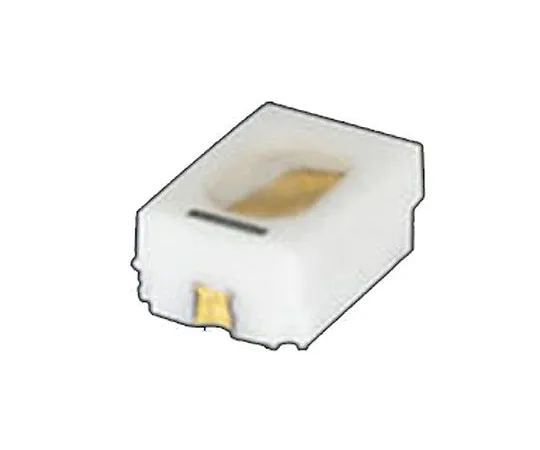

63-5163-26 NSSU100DT Nichia, UV LED, 375nm 9.9mW 110 °, 2-Pin Surface Mount package NSSU100DT
Product Description
Product Model: 63-5163-26Product Brand: Nichia Features […]
Contact Us
Product Details
Product Model: 63-5163-26
Product Brand: Nichia
Features
- UV LED NSSU100D, Nichia. The NSSU100D by Nichia is a high-power UV (ultraviolet) SMD LED. The chip type is 3020 and its compact size makes it flexible to *** on a range of applications.. Features List:. Peak wavelength: min. 370 nm, typ. 375 nm, max. 380 nm (Rank Ub) Spectrum half width 15 nm Viewing angle 110 degrees forward voltage: typ. 3.6 V, max. 4.0 V. Total radiant flux - radiant power: min. 6.8 mW, max. 9.6 mW (Rank 8), min. 9.6 mW, max. 13.6 mW (Rank 9), min. 13.6 mW, max. 19.2 mW (Rank 10). Applications:. UV illumination for UV cameras UV tracing UV curing of epoxy and ink Scientific instrumentation Sensor technology Fluorescence spectroscopy Fluorescence contrast in machine vision Fibre coupled LED sources; Excitation source for luminesce
Spec
- Quantity：1piece
- Number of LEDs : 1
- Peak Wavelength : 375nm
- Radiant Flux : 9.9mW
- Viewing Angle : 110 °
- Lens Shape : Oval
- Number of Pins : 2
- Mounting Type : Surface Mount
- Height : 1.2mm
- Length : 3mm
- Width : 2mm
- CODE No.:890-3966
