Spec

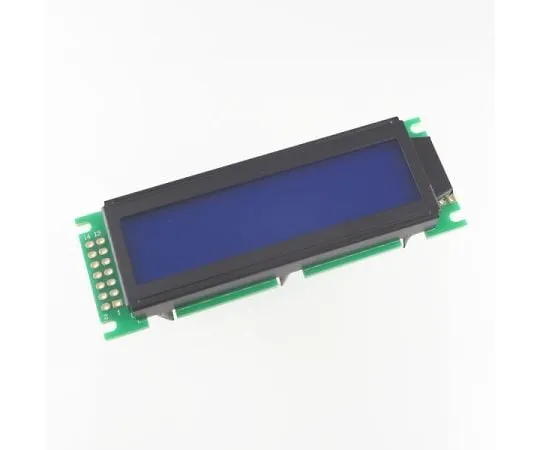

• *The control IC has been changed from the old model "TC 1602 E -13 T," so please check the specifications before using. Up to 16 digits and 2 lines, alphanumeric and katakana characters in white. The power supply runs at 5V and the backlight (blue) also runs at 5V. Character LCD module with 16 digits and 2 lines. A module with logic level 5V. (Specifications)
• Number of characters displayed: 16 characters x 2 lines
• Character composition: 5 x 7 dots
• Backlight: Yes
• Interface: Parallel
• Power supply voltage: + 4.8 V to + 5.2 V
• LCD power voltage: 5 V
• Dimensions: 85 mm x 29.5 mm x 12.5 mm
• Display range: 56.2 mm x 10.2 mm
• Remarks: Background blue emission, text white emission
