63-5162-15 3M Yellow Electrical Tape, 6mm x 66m T566
Electronic/Electrical Parts and Controll Equipments

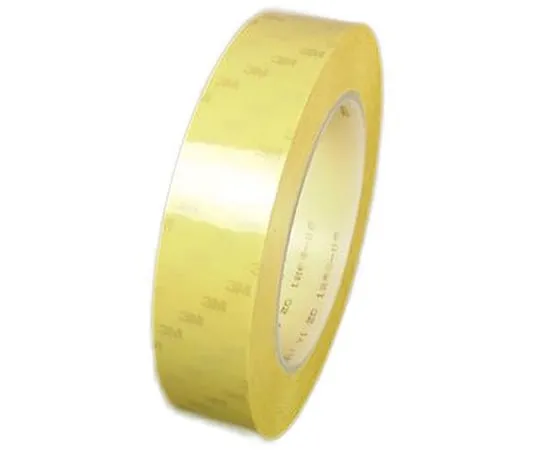

63-5162-15 3M Yellow Electrical Tape, 6mm x 66m T566

model: 63-5162-15
brand: 3M Company

Product Description

Product Model: 63-5162-15Product Brand: 3M Company Feat […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 63-5162-15
Product Brand: 3M Company

Features

  • 3M™ Polyester Film Electrical Tape 56. 3M™ Polyester Film Electrical Tape 56 is a 1 mm conformable yellow polyester film tape with rubber thermosetting adhesive. The tape has pressure sensitive adhesive coated on one side and doesn ‘t require heat. The tape performs at temperatures of -40°C to 130°C without any loss of electrical properties. Application. 3M™ Polyester Film Electrical Tape 56 is a 1 mm conformable yellow polyester film tape with rubber thermosetting adhesive. It provides excellent chemical, solvent and moisture resistance that resists cut-through and abrasion. It is designed for insulating applications requiring a thin, durable tape. Features and Benefits. General purpose polyester tape with thermosetting rubber adhesive. Designed for insulating applications requiring a thin, durable tape with high dielectric strength. Withstands higher-temperature conditions than tapes with acetate cloth backings. Conformable, exhibits excellent chemical, solvent and moisture resistance and resists cut-through and abrasion. 1 mm film thickness. FAQ's. Can wires with exposed cables be made safe with this tape?. Yes, the electrical tape is designed for this purpose, but would recomm***ed seek professional advice to deal with exposed wires.

Spec

  • Quantity:1piece
  • Colour : Yellow
  • Backing Material : PET
  • Width : 6mm
  • Length : 66m
  • Thickness : 0.06mm
  • Minimum Operating Temperature : 0°C
  • Maximum Operating Temperature : +130°C
  • Adhesive Material : Thermosetting Rubber
  • Trade Name : Scotch 56
  • Adhesion Strength : 5.5 N/cm
  • Tensile Strength : 44N/cm
  • Breakdown Voltage : 3000V
  • CODE No.:885-4909
