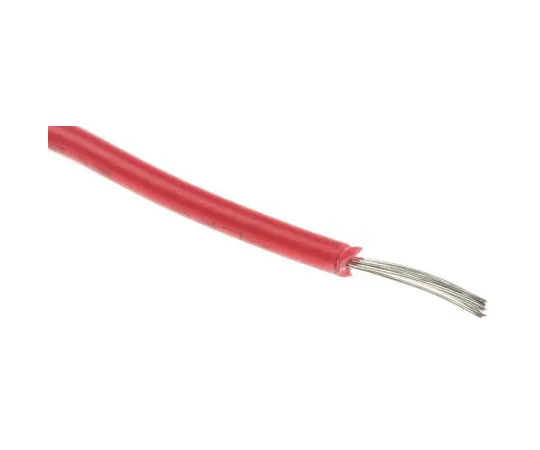

63-5161-58 RS PRO Red Hook Up Wire UL1569, 0.13 mm², 300 V 26 AWG, 100m 884-0871
Product Description
Product Model: 63-5161-58Product Brand: RS PRO Features […]
Contact Us
Product Details
Product Model: 63-5161-58
Product Brand: RS PRO
Features
- Tag may also indicate the following: 600 V peak for electronic *** only. RS UL1569 Hook-Up Wire. The UL1569 Hook-up wire can be ***d in electronic and appiliance applications where they are not subjected to movement or mechanical damage. ; Soft annealed bare copper conductor ; PVC Insulated ; High flexing UL 10198 ; Continuous *** up to 105°C ; Various colours available
Spec
- Quantity：1roll(100m)
- Cross Sectional Area : 0.13 mm²
- Sheath Colour : Red
- American Wire Gauge : 26 AWG
- Core Strands : 7/0.16 mm
- Insulation Material : PVC
- Outer Diameter : 1.3mm
- Length : 100m
- Voltage Rating : 300 V
- Conductor Material : Stranded Tinned Copper
- Wire Style : UL1569
- Maximum Operating Temperature : +105°C
- Insulation Wall Thickness : 0.4mm
- CODE No.:884-0871
