Electronic/Electrical Parts and Controll Equipments

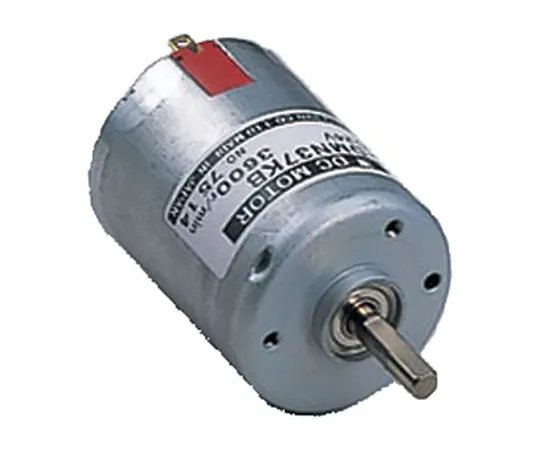

63-5161-06 Nidec Brushed DC Motor, 9.2 W, 24 V dc, 24.5 mNm, 3600 rpm, 5mm Shaft Diameter DMN37KB
model:
63-5161-06
brand:
Copal Electronics
Product Description
Product Model: 63-5161-06Product Brand: Copal Electroni […]
Contact Us
Product Details
Product Model: 63-5161-06
Product Brand: Copal Electronics
Features
- Nidec - DC Brush Motors DMN37. Brushed DC Motors DMN37 Series. DC Brush Motors Available with 12V or 24V Available with 7.2W or 9.2W
Spec
- Quantity：1piece
- Supply Voltage : 24 V dc
- DC Motor Type : Brushed
- Power Rating : 9.2 W
- Output Speed : 3600 rpm
- Shaft Diameter : 5mm
- Maximum Output Torque : 24.5 mNm
- Length : 81.2mm
- Width : 38.4mm
- Dimensions : 38.4 (Dia.) x 81.2 mm
- Current Rating : 600 mA
- Standards Met : RoHS
- CODE No.:881-4488
