63-5160-88 Neutrik 3 Way Cable Mount XLR Connector, Male, Au over Ni Plated Contacts,
Electronic/Electrical Parts and Controll Equipments

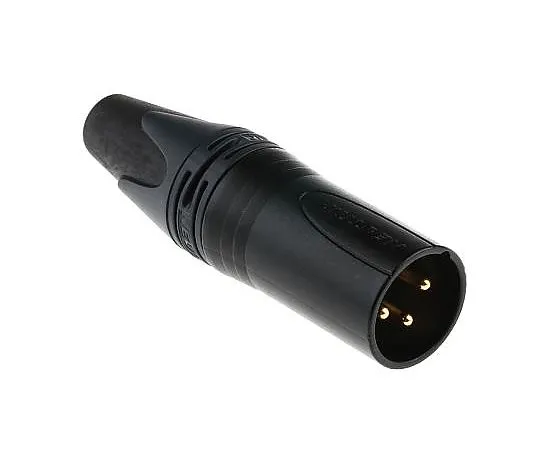

63-5160-88 Neutrik 3 Way Cable Mount XLR Connector, Male, Au over Ni Plated Contacts, <50 V NC3MXX-B

model: 63-5160-88
brand: Neutrik

Product Description

Product Model: 63-5160-88Product Brand: Neutrik Feature […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 63-5160-88
Product Brand: Neutrik

Features

  • Not to be ***d as the main connector
  • XX Series XLR Nickel Cable Connector
  • The XX Series XLR connector from Neutrik has a built-in lock function to ensure secure connection and secure housing. This connector has a chuck-type strain relief and a polyurethane cable gland, which increases the pull-out force and enhances the b***ing stress resistance of the cable. This XLR connector has a strong die cast structure, is easy to assemble and durable, and has a mechanical life of more than 1000 insertions and removals.
  • This XX Series connector offers a number of advantages, including high reliability and ergonomic XLR with excellent contact uniformity.
  • Features and benefits: Low contact resistance through the cage design of female contactsFemale contacts with solder barriers prevent solder from entering the contact's tangleFemale connectors with solder metal latchsEasy and quick assembly with high pull-out strain relief
  • Product application information
  • XLR connectors are recognized as a standard for microphone and PA connections in both the studio and stage. It can also be ***d for applications such as video and lighting systems. XLR connectors provide reliable connectivity in busy environments. The durability and quality of connectors are paramount to those who manage professional audio and stages.

Spec

  • Quantity:1piece
  • Number of Contacts : 3
  • G***er : Male
  • Mounting Type : Cable Mount
  • Body Orientation : Straight
  • Colour : Black
  • Contact Plating : Au over Ni
  • Housing Material : Polyurethane (Boot), Zinc Die Cast (Shell)
  • Termination Method : Solder
  • Current Rating : 16A
  • Voltage Rating : <50 V
  • Contact Material : Brass
  • Minimum Operating Temperature : -30°C
  • Maximum Operating Temperature : 80°C
  • CODE No.:880-8124
