Electronic/Electrical Parts and Controll Equipments

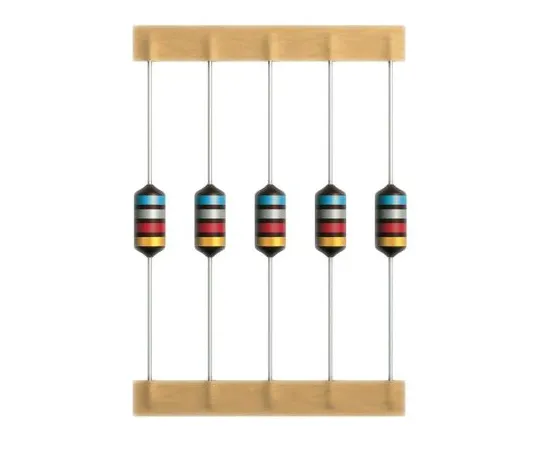

63-5160-81 EPCOS 1 mH ±5% Ferrite Leaded Inductor, Max SRF:2.2MHz, Q:60, 280mA Idc, 4.2Ω Rdc LBC B82144F1105J000
Product Description
Product Model: 63-5160-81Product Brand: EPCOS Features […]
Contact Us
Product Details
Product Model: 63-5160-81
Product Brand: EPCOS
Features
- Epcos B82144F LBC Series RF Chokes. Epcos B82144F LBC series RF chokes are suitable for use in telecommunications, automotive electronics, energy saving lamps and entertainment electronics. They can also be used for RF blocking and filtering and decoupling and interference suppression. These inductors consist of a large ferrite drum core with enamel copper wire winding and a flame retardant lacquer coating. High rated current Very wide inductance range Suitable for wave soldering Inductance indicated b colour bands in accordance with IEC 60062 Electroplated with nickel and pure tin
Spec
- Quantity：1bag(10pieces)
- Inductance : 1 mH
- Maximum DC Current : 280mA
- Mounting Type : Axial
- Maximum DC Resistance : 4.2Ω
- Tolerance : ±5%
- Diameter : 6.5mm
- Length : 9.2mm
- Dimensions : 6.5 (Dia.) x 9.2mm
- Core Material : Ferrite
- Maximum Self Resonant Frequency : 2.2MHz
- Series : LBC
- Terminal Type : Axial Leaded
- CODE No.:880-7240
