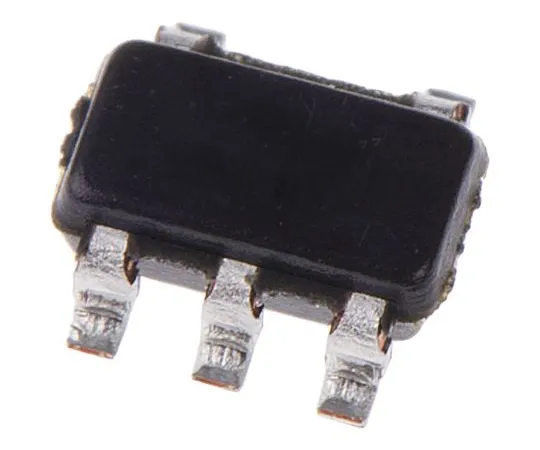

63-5160-67 STMicroelectronics STMPS2141STR, 1-Channel Load Switch IC, High Side MOSFET Switch, 0.5A, 2.7 → 5.5V 5-Pin, STMPS2141STR
model:
63-5160-67
brand:
STMicroelectronics
Product Description
Product Model: 63-5160-67Product Brand: STMicroelectron […]
Contact Us
Product Details
Product Model: 63-5160-67
Product Brand: STMicroelectronics
Features
- STMPS21xx, Enhanced Single Channel Power Switches, STMicroelectronics. The STMPS21xx power distribution switches are int***ed for applications with expected heavy capacitive loads and short circuits. 90 mΩ high-side MOSFET switch 500 mA continuous current for STMPS2141, STMPS2151 1000 mA continuous current for STMPS2161 Thermal and short circuit protection with overcurrent logic output Operating range from 2.7 V to 5.5 V CMOS and TTL compatible enable input Under Voltage Lockout (UVLO) 12 μA maximum standby supply current
Spec
- Quantity：1bag(10pieces)
- Power Switch Type : High Side MOSFET Switch
- Switch On Resistance : 160mΩ
- Number of Outputs : 1
- Voltage : 2.7 → 5.5V
- Current : 0.5A
- Mounting Type : Surface Mount
- Package Type : SOT-23
- Pin Count : 5
- Dimensions : 3 x 1.75 x 1.3mm
- Length : 3mm
- Width : 1.75mm
- Height : 1.3mm
- Maximum Operating Temperature : +125 °C
- Minimum Operating Temperature : -40 °C
- CODE No.:880-5406
