Features

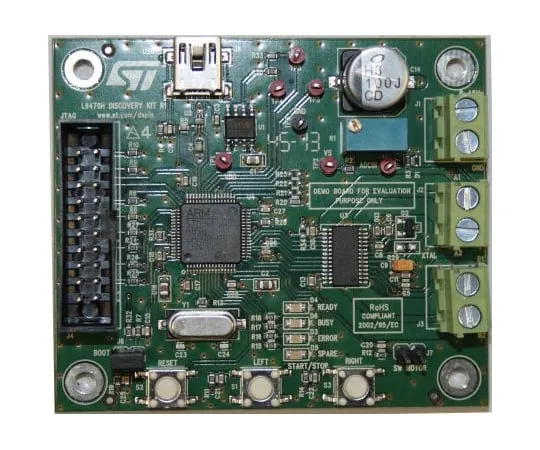

• Evaluation Board for L6470 Motor Driver. STMicroelectronics EVAL6470-DISC is a development tool to help evaluate the L6470 motor driver. The ST's eval board is an easy to use starter kit that can be used with a software interface or with custom firmware due to the embedded microcontroller. "Plug and Play" tool offers good motor control flexibility due to the wide operating voltage range and the current capability. The on board LED display shows ready, busy and error warning. Voltage mode driving featuring extreme smoothness Up to 1/128 microstepping Fully autonomous solution embedding an STM32™ MCU and the L6470H stepper motor driver Compatible with SPIN family evaluation software Wide voltage range from 8 V to 45 V High phase current up to 3 Ar.m.s Footprint optimized for external resonator or crystal Switch motor input control Keys start/left - stop/right - reset Ready, busy, error LED indicators Spare LED indicators for specific design Adjustable supply voltage compensation
