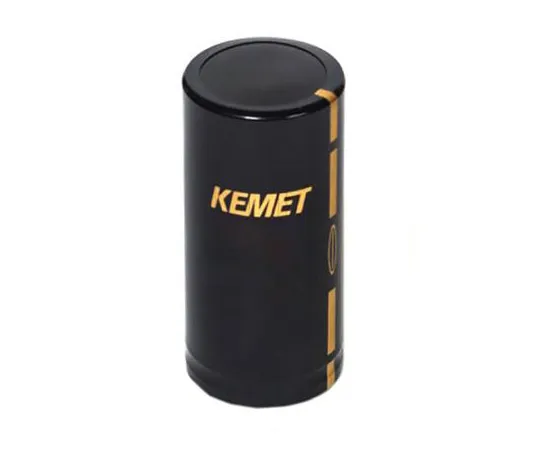

63-5157-60 KEMET 1000μF 550V dc Aluminium Electrolytic Capacitor 40 x 105mm +85°C 40mm 10mm 105mm ALC10A102EP550
Product Description
Product Model: 63-5157-60Product Brand: KEMET Features […]
Contact Us
Product Details
Product Model: 63-5157-60
Product Brand: KEMET
Features
- ALC10 Series. Kemet ALC10 series snap-in aluminium electrolytic capacitors cover a wide range of case sizes and voltage ratings. The ALC10 Series is designed for high voltage ***, up to 550 V dc, as well as high ripple current applications. The ALC10 series features surge voltage capability and very long-life performance, suitable for applications demanding high reliability. Suitable applications for these aluminium electrolytic capacitors include frequency converters, switch mode power supplies (SMPS) and uninterruptible power supply systems (UPS). Multi-pin snap-in terminations Compact size Long life, up to 18,000 hours High ripple current High voltage Excellent surge voltage capability
Spec
- Quantity：1piece
- Capacitance : 1000µF
- Voltage : 550V dc
- Technology : Electrolytic
- Dimensions : 40 x 105mm
- Height : 105mm
- Length : 105mm
- Minimum Operating Temperature : -40°C
- Diameter : 40mm
- Maximum Operating Temperature : +85°C
- Lead Pitch : 10mm
- Series : ALC10
- Ripple Current : 4.86 A @ 100 Hz, 7.59 A @ 10 kHz
- CODE No.:874-1620
