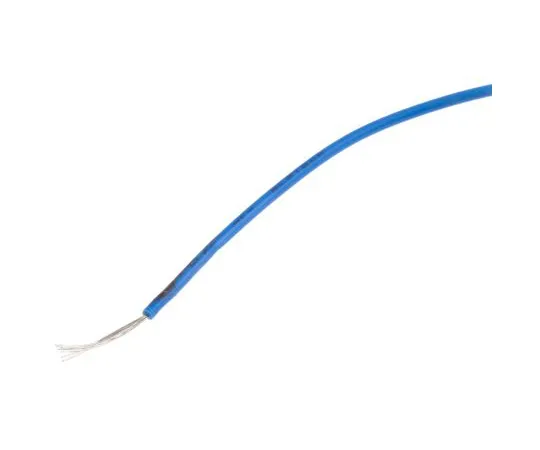

63-5157-28 RS PRO Blue Hook Up Wire UL1007, 0.13 mm², 300 V 26 AWG, 100m 874-0400
Product Description
Product Model: 63-5157-28Product Brand: RS PRO Features […]
Contact Us
Product Details
Product Model: 63-5157-28
Product Brand: RS PRO
Features
- RoHS, VW-1, UL758, UL1581. Tags may also indicate the following: 600 V Peak - For electronic *** only. RS UL1007 300V Hook-up Wire. The RS version of this hook up wire can be ***d for internal wiring of electronic and electrical equipment. Stranded tinned copper conductor Various colours PVC insulation 18,20,22,24,26,28 AWG
Spec
- Quantity：1roll(100m)
- Cross Sectional Area : 0.13 mm²
- Sheath Colour : Blue
- American Wire Gauge : 26 AWG
- Core Strands : 7/0.16 mm
- Insulation Material : PVC
- Outer Diameter : 1.3mm
- Length : 100m
- Voltage Rating : 300 V
- Conductor Material : Tinned Copper
- Wire Style : UL1007
- Maximum Operating Temperature : +80°C
- Standards Met : RoHS Compliant, UL 1581, UL 758
- CODE No.:874-0400
