Electronic/Electrical Parts and Controll Equipments

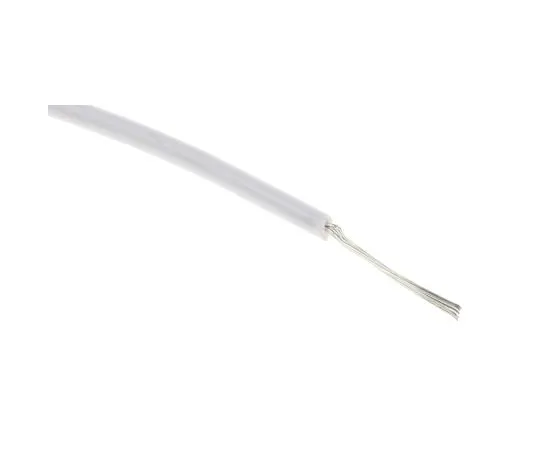

63-5157-22 RS PRO White Hook Up Wire UL1007, 0.08 mm², 300 V 28 AWG, 100m 874-0371
Product Description
Product Model: 63-5157-22Product Brand: RS PRO Features […]
Contact Us
Product Details
Product Model: 63-5157-22
Product Brand: RS PRO
Features
- RoHS, VW-1, UL758, UL1581. Tags may also indicate the following: 600 V Peak - For electronic *** only. RS UL1007 300V Hook-up Wire. The RS version of this hook up wire can be ***d for internal wiring of electronic and electrical equipment. Stranded tinned copper conductor Various colours PVC insulation 18,20,22,24,26,28 AWG
Spec
- Quantity：1roll(100m)
- Cross Sectional Area : 0.08 mm²
- Sheath Colour : White
- American Wire Gauge : 28 AWG
- Core Strands : 7/0.12 mm
- Insulation Material : PVC
- Outer Diameter : 1.2mm
- Length : 100m
- Voltage Rating : 300 V
- Conductor Material : Tinned Copper
- Wire Style : UL1007
- Maximum Operating Temperature : +80°C
- Insulation Wall Thickness : 0.4mm
- CODE No.:874-0371
