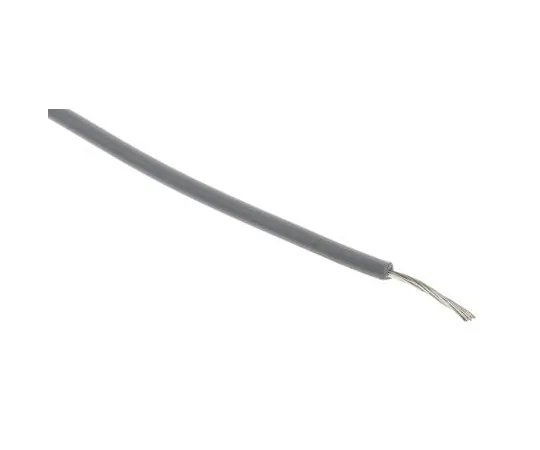

63-5156-82 RS Grey Hook Up Wire UL3239, 0.33 mm², 6 kV dc 22 AWG, 100m 873-8996
Product Description
Product Model: 63-5156-82Product Brand: RS PRO Features […]
Contact Us
Product Details
Product Model: 63-5156-82
Product Brand: RS PRO
Features
- UL758, UL1581, VW-1. RS UL 3239 Hook-up Wire. The UL3239 Hook up wire is generally ***d for internal wiring of TV receivers. ; Stranded tinned copper conductor ; XPLE insulation material ; Various colours ; 22,24,26 & 28 AWG ; UL758, UL1581 ; Flammability Rating VW-1
Spec
- Quantity：1roll(100m)
- Cross Sectional Area : 0.33 mm²
- Sheath Colour : Grey
- American Wire Gauge : 22 AWG
- Core Strands : 17/0.16 mm
- Insulation Material : XLPE
- Outer Diameter : 1.58mm
- Length : 100m
- Voltage Rating : 6 kV dc
- Conductor Material : Tinned Copper
- Wire Style : UL3239
- Maximum Operating Temperature : +105°C
- Insulation Wall Thickness : 1.6mm
- CODE No.:873-8996
